TZT9F

MSRP: $2,995.00

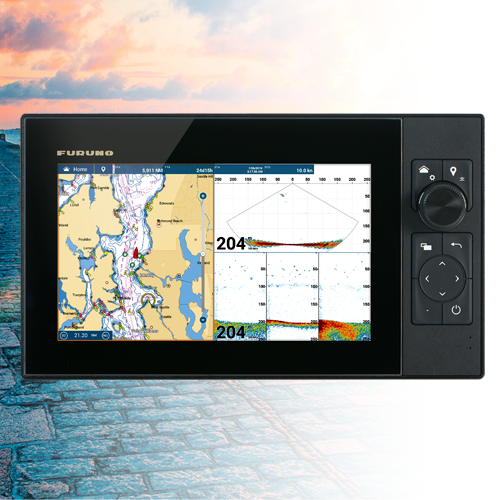

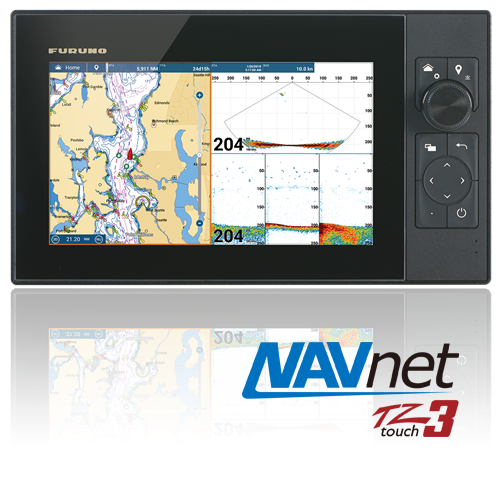

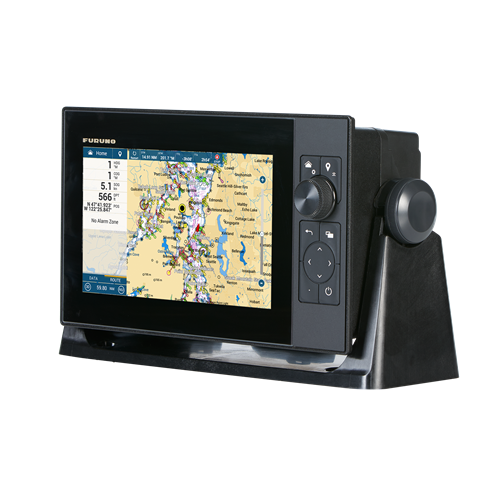

NavNet TZtouch3 Chart Plotter/Fish Finder - 1kW Single Channel TruEcho CHIRP™, 9" Hybrid Control IPS Display

Chart TypeVector or Raster or Satellite Photo or 3D Data or C-Map or CMOR

Display Size9 inches

Display TypeColor Multi Touch LCD

FrequencyCW 50-200kHz or CHIRP 40kHz to 225kHz

Power Usage12-24 VDC

Power Output300 W or 600 W or 1 kW

Receiver TypeGPS or SBAS or WAAS-GPS

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products TZT9F

Go on a power trip with the most powerful MFD series available

Hybrid controls enhance this 9” Multi Function Display, making it easy and intuitive to use under any sea conditions. Rest your hand on the RotoKey™ as you crash through the waves, and navigate easily to your charted destination. Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Single Channel 1kW TruEcho CHIRP™ & CW Fish Finder.

EASY to use; because finding your happy place shouldn't be difficult!

We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

The return of Hybrid Control

Captains who have smaller boats know that when you are crashing through the waves, it can be difficult to get an accurate tap on the screen. That’s why we made a TZtouch3 MFD with Hybrid Control. You get the best of both worlds with a full multi touch display and a handy, built-in keyboard that features a Rotokey™, cursor pad and dedicated buttons!

Protect your livelihood with new PIN CODE security

The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

Never lose waypoints, routes or settings again with TZ Cloud

Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)

We gave you something to CHIRP about!

TZT9F incorporates a powerful internal 1kW TruEcho CHIRP™ or CW Fish Finder. TruEcho CHIRP Fish Finders transmit pulses across a wide range of frequencies, allowing Furuno’s superior digital signal processing (DSP) to display fish and structure targets with unparalleled clarity, accuracy and resolution.

More power to see 120 degrees port-to-starboard; giving you an edge over the competition

Normal down-sounding Fish Finders have a beam angle of 40˚ or less. But with the DFF3D Multi Beam Sonar, you see 120˚ port-starboard for 200m (650+ ft). Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP™, you’ll have the ultimate fishing machine!

The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40˚ ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

MapMedia Raster and Vector Chart Library

Freely choose the charts that fit your individual needs. Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be easily unlocked. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.

And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.

Click here to view MapMedia chart options for your MFD.

More power means better detection of all the targets around you

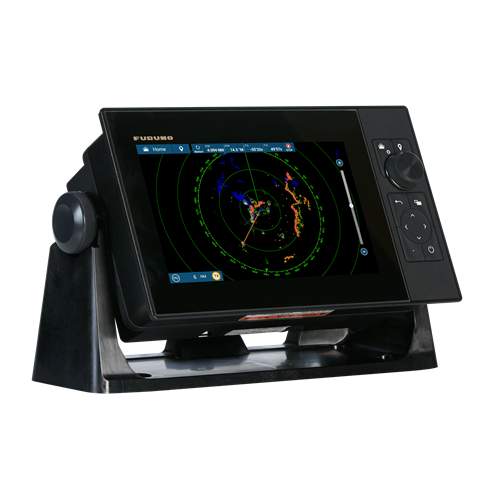

Are you ready to go on a Radar power trip? Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno’s NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.

Build the ultimate Navigation Suite

The beauty of NavNet TZtouch3 is its scalability - systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.
