DRS4DNXT

MSRP: $2,695.00

24" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable

Antenna Size24 inches

Antenna TypeRadome

BandX-Band

Display SizeSupplied Separately

Display TypeSupplied Separately

Power Usage12-24 VDC

Power Output25 W

Range48 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DRS4DNXT

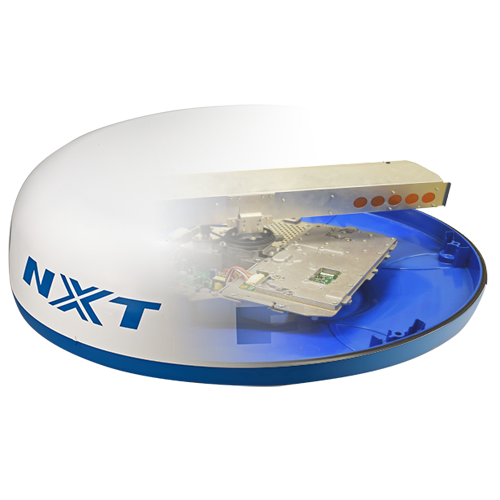

The NXT step with doppler Radar technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

Target Analyzer function utilizing Doppler technology

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

RezBoost Beam sharpening

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.

Bird Mode gives you the inside scoop on schools of fish!

The DRS-NXT series features an enhanced Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird Mode adjusts the gain and sea settings automatically for optimal visibility.

  • Cables
  • Miscellaneous Accessories

Cables

Cables

$140.00
DRS AX and NXT Signal/Power Cable, 10 Meter
$180.00
DRS AX and NXT Signal/Power Cable, 15 Meter
$230.00
DRS AX and NXT Signal/Power Cable, 20 Meter
$350.00
DRS AX and NXT Signal/Power Cable, 30 Meter
$140.00
5M SIGNAL POWER CBL DRS

Miscellaneous Accessories

Miscellaneous Accessories

$32.00

RETRO KIT DRS4DNXT

$28.00
DRS DOME BREATHER MOD KIT*

Recommended Additions

  • TZT9

    $4,695.00

    NavNet TZtouch 9" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • TZT14

    $5,695.00

    NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)
    Stock of new TZT14 units has been depleted, but Refurbished units are available at a discounted price - see TZT14-REFURB

    Details
  • TZTL12F

    $2,495.00

    NavNet TZtouch2 Chart Plotter/Fish Finder, 12" Touch Screen Display

    Details
  • TZTL15F

    $3,795.00

    NavNet TZtouch2 Chart Plotter/Fish Finder, 15" Touch Screen Display

    Details
  • SC70

    $4,995.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details

NavNet TZtouch Brochure

For more information, including dimensions and product specifications, download the brochure.

DRS-NXT Series Brochure

For more information, including dimensions and product specifications, download the brochure.

NavNet TZtouch2 Brochure

For more information, including dimensions and product specifications, download the brochure.
