RD33

MSRP: $595.00

4.3" Color LCD Navigational Data Organizer - NMEA2000 & NMEA0183 compatible, w/6M NMEA2000 Cable

Display Size4.3 inches

Display TypeColor LCD

Power Usage12-24 VDC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products RD33

See your data the way you want to see it

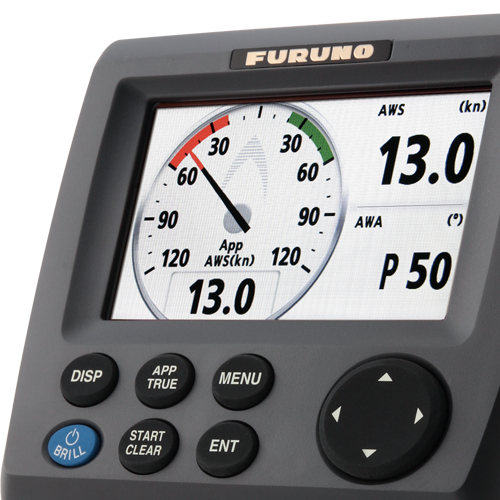

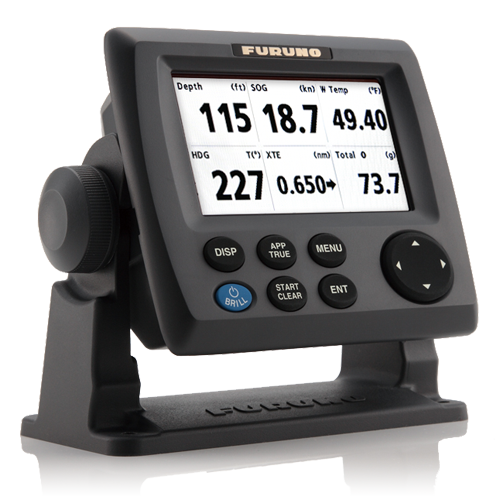

The RD33 is a navigational data organizer that allows the operator to select the perfect way to display data from interfaced equipment such as GPS, chartplotter, radar, fish finder, autopilot, instruments and other sensors including engine information. The high contrast, color 4.3" LCD may be installed in a compact space, remote from its sources. The screen is impressively bright, remarkably crisp and easy to read. Various display modes are available including Speedometer, Highway and Text. The text mode presents up to six of the most necessary types of data. The display layout can be customized for your specific needs. This versatile product can also be added to a NavNet system, displaying a variety of navigation data from the CAN bus network.

Bridge the data gap with style!

The RD33 accepts a wide variety of navigation data and displays them in numerical and graphic formats. You may freely select and arrange which data is displayed on the screen. Furthermore, seven patterns of customized display settings can be stored in the memory to give speedy access and convenience while onboard.

The RD33 features a visually appealing fresh new look, combining easy access with user functionality. Thanks to the bright, high-resolution LCD, the RD33 provides an easy-to-read display to monitor information from remote equipment, through an intuitive graphical user interface.

Tackle information overload

Because the RD33 is a capable NMEA0183 and NMEA2000 device, you can use it to bridge both data formats and output the information you desire, in whatever format you desire, to the rest of your onboard network. The RD33 communicates over a NMEA0183 or NMEA200-compatible CANbus network.

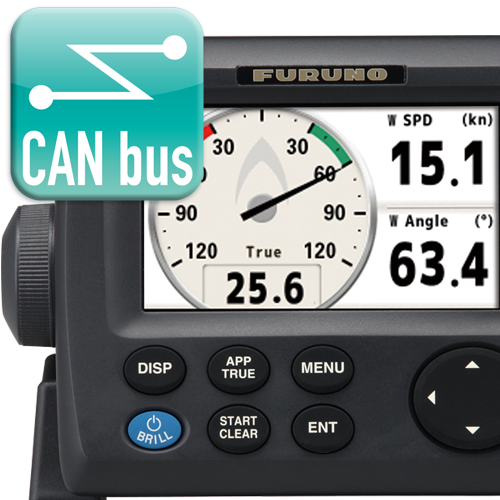

CAN bus is a communication protocol that shares multiple data and signals through a single backbone cable. You can simply connect any CANbus device into the backbone cable to expand your network onboard. With CAN bus, IDs are assigned to all devices, and thre status of each sensor in the network can be detected. All CAN bus devices can be incorporated in the NMEA2000 network.

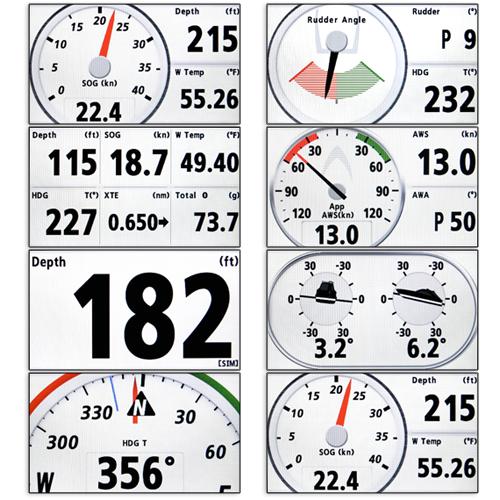

Customizable split-screen display

More than just communicating in the format you want, you can customize the display to view the information in the format that works best for you. Displaying a wide variety of numerical and graphical data in easy-to-read formats that you can see from a distance is the key to organizing your onboard information. With the RD33, you can customize the displays to show large numbers or, if you prefer the look of traditional analog guages, you can display those as well. You can even split the screen in up to six separate segments. You decide what information is important to you, and that’s what you’ll see with every glance. The RD33 packs a big punch when it comes to avoiding Information Overload!

  • Cables
  • Related Products
  • Smart Sensors
  • Miscellaneous Accessories

Cables

Cables

$15.00

NMEA2000 Micro Cable, .3 Meter, Male-Female connectors

$60.00

NMEA2000 Micro Cable, 5 Meter, Male-Female connectors (angled)

$70.00

NMEA2K PWR CBL 8M POWER TEE

$105.00

6 PIN NMEA CBL ASSY 15M

$75.00

NMEA2000 Micro Cable, 10 Meter, Male-Female connectors (angled)

$40.00

GO TO 001-105-810-10

$60.00

NMEA2000 Micro Cable, 6 Meter, Male-Female connectors (straight)

$35.00

NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (angled)

$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

$100.00

NMEA2000 Micro Cable, 20 Meter, Male-Female connectors (angled)

Related Products

Related Products

$175.00

Junction Box - NMEA2000

Smart Sensors

Smart Sensors

$300.00

Plastic Thru-Hull, Digital Depth and Temp Sensor, NMEA2000

$400.00

Bronze Thru-Hull, Digital Depth, Speed and Temp Sensor, NMEA2000

$350.00

Plastic Thru-Hull, Digital Depth, Speed and Temp Sensor, NMEA2000

$600.00

Bronze, Long Thru-Hull, Digital Depth and Temp Sensor, NMEA2000 w/HSFB

$350.00

Bronze Thru-Hull, Digital Depth and Temp Sensor, NMEA2000

$250.00

Plastic Transom Mount, Digital Depth, Speed & Temp Sensor, NMEA2000

$300.00

Plastic In-Hull, Digital Depth Sensor, NMEA2000

Miscellaneous Accessories

Miscellaneous Accessories

$25.00

NMEA2000 Micro Field Connector, Female

$30.00

MOUNTING BRACKET GP33/RD33

$35.00

NMEA2000 T-Connector, Female/Female/Male

$35.00

GP/RD RETROFIT COVER UP BEZEL

$7.00

GO TO 100-357-161-00

$12.00

NMEA2000 Micro Terminator, Male

$12.00

NMEA2000 Micro Terminator, Female

$25.00

NMEA2000 Micro Field Connector, Male

$25.00

HARD COVER GP33 RD33

$25.00

HARD COVER GP33 RD33

Recommended Additions

  • LH3000

    $895.00

    30W Loudhailer with 4.5W Intercom

    Details
  • TZ EXPLORER

    $1,250.00

    MaxSea TimeZero Explorer with NavNet TZtouch/3D and FAR2XX7 Interface

    Details
  • 1834C/NT

    $4,595.00

    4.0 kW Transmitter, 36 NM Radar/Chart Plotter with 10.4 Inch Color LCD Display and 24 Inch Radome. Uses C-MapNT+ and NT Max Cartography.

    Details
  • MFD12

    $3,695.00

    NavNet 3D 12.1" Multi Function Display w/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details

RD33 Brochure

For more information, including dimensions and product specifications, download the brochure.
