DFF3

MSRP: $2,395.00

Price Less Transducer

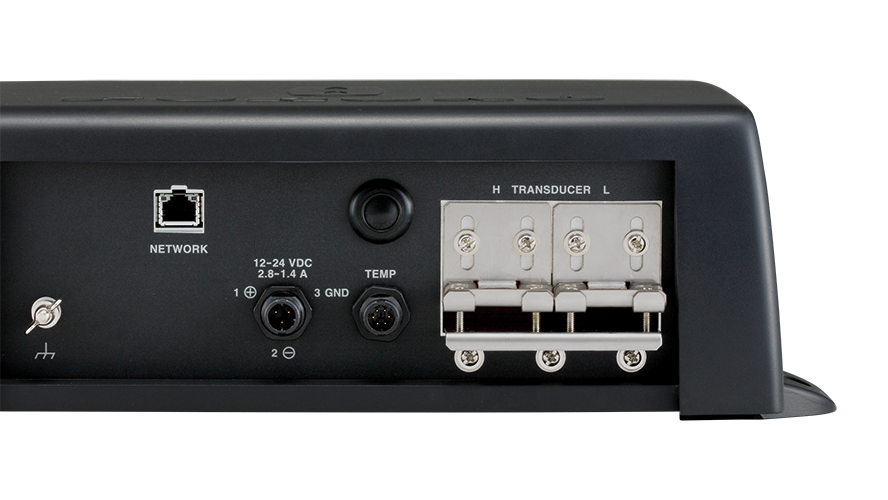

External Black Box Echosounder Module for NavNet w/5M LAN Cable, Less Transducer (1, 2 or 3kW)

Display SizeSupplied Separately

Display TypeSupplied Separately

FrequencySelectable

Power Usage12 VDC or 24 VDC

Power Output1 kW or 2 kW or 3 kW

Range3000 m

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DFF3

Power packed for deep water fishing

Furuno's DFF3 is a network sounder featuring FDF (Furuno Digital Filter) signal processing technology. The DFF3 is designed for use with NavNet, NavNet VX2, NavNet 3D, NavNet TZtouch and NavNet TZtouch2. This digital Network Sounder can turn any NavNet display into a powerful, dual-frequency digital fish finder. The compact network sounder unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple displays attached, each of those displays will have access to the Network Sounder.

The sounder itself has a selectable 1, 2 or 3kW output power. You may choose any two operating frequencies from 28 to 200 kHz with FFS (Furuno Free Synthesis) technology. With the powerful DFF3, you can obtain detailed echoes of bottom structure and fish using range scales of up to 3,000 meters (nearly 10,000 feet). And because the Network Sounder is used on a NavNet display, you will also be able to use its Radar and Chart Plotter features depending on which unit you have.

Furuno Digital Filter (FDF) Fish Finder

Furuno Digital Filter (FDF™) Fish Finders feature advanced filtering capabilities and digital auto tuning, which eliminates noise. Furuno FDF Fish Finders deliver the ability to spot individual fish with clarity, accuracy and detail. Whether in shallow or deep water, Furuno FDF Fish Finders give you what you would expect from a Fish Finder at all times.

Know more about the fish under your boat

Furuno’s award winning network Fish Finders offer a unique fish size analyzer function, ACCU-FISH™. The ACCU-FISH™ algorithm analyzes echo returns to compute individual fish size and display it on the screen.

  • Cables
  • Transducers
  • Miscellaneous Accessories

Cables

Cables

$95.00
POWER CABLE ASSY 3.5M DFF3D
$55.00
LAN CBL ASSY 2M RJ45XRJ45 4P
$65.00
LAN CBL ASSY 5M RJ45 X RJ45 4P
$100.00
LAN CBL ASSY 10M RJ45XRJ45 4P
$50.00
CONN ASSY W/2M CBL 6P WP ST

Transducers

Transducers

$640.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

$640.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt

$3,250.00

FRP Transducer (BLT), Type 28BL-6HR, 2kW (No Plug)

$1,110.00

Rubber Coated Transducer, Type 28F-8, 1kW (No Plug)

$4,940.00

FRP Transducer (BLT), Type 28BL-12HR, 3kW (No Plug)

$1,495.00

Rubber Coated Transducer, Type 28F-18, 2kW (No Plug)

$2,175.00

Go To CA28BL-12HR - Rubber Coated Transducer, Type 28F-24H, 3kW (No Plug)

$3,500.00

Rubber Coated Transducer, Type 28F-38M, 5kW (No Plug)

$4,995.00

Rubber Coated Transducer, Type 28F-72, 10kW (No Plug)

$3,250.00

FRP Transducer (BLT), Type 38BL-9HR, 2kW (No Plug)

$3,995.00

FRP Transducer (BLT), Type 38BL-15HR, 3kW (No Plug)

$280.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$555.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)

$810.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)

$450.00

Rubber Coated Transducer, Type 50B-9B, 1kW (No Plug)

$3,250.00

FRP Transducer (BLT), Type 50BL-12HR, 2kW (No Plug)

$3,995.00

FRP Transducer (BLT), Type 50BL-24HR, 3kW (No Plug)

$2,095.00

Rubber Coated Transducer, Type 50F-24H, 3kW (No Plug)

$440.00

Rubber Coated Transducer, Type 50B-6G, 1kW (No Plug)

$3,240.00

Rubber Coated Transducer, Type 50F-38, 5kW (No Plug)

$4,200.00

Rubber Coated Transducer, Type 50F-70, 10kW (No Plug)

$780.00

Rubber Coated Transducer, Type 88B-8, 1kW (No Plug)

$1,030.00

Rubber Coated Transducer, Type 88B-10, 2kW (No Plug)

$3,220.00

Rubber Coated Transducer, Type 88F-126H, 5kW (No Plug)

$4,890.00

Rubber Coated Transducer, Type 100B-10R, 3kW (No Plug)

$875.00

Bronze Thru-Hull Transducer, Type 200B-5, 1kW (No Plug)

$435.00

Rubber Coated Transducer, Type 200B-8B, 2kW, 15m Cable (No Plug)

$745.00

Rubber Coated Transducer, Type 200B-8B, 2KW, 30m Cable (No Plug)

$910.00

XDCR 200B-8B W/50M CBL 200KHZ

$1,700.00

Rubber Coated Transducer, Type 200B-12H, 5kW (No Plug)

$300.00

Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)

$780.00

Bronze Thru-Hull Transducer, Type 200B-82M, 2kW (No Plug)

$3,400.00
Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 38-75kHz & 130-210kHz, 2 kW (No plug)
$3,195.00

Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 33-60kHz & 130-210kHz, 2/3 kW (No plug)

$3,195.00

Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 24-45kHz & 130-210kHz, 2/3 kW (No Plug)

$980.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$980.00

Rubber Coated Transducer, 1kW (No Plug)

$2,500.00

Urethane Thru-Hull Transducer with Temp, Fairing Block and Tube, 2kW (No Plug)

$2,000.00

No Longer Available - Rubber-Coated In-Hull Transducer, 2kW (No Plug)

$1,400.00

Bronze Thru-Hull Transducer with Temp and Hi-Speed Fairing Block, 1kW (No Plug)

$1,495.00

Stainless Steel Wide Beam Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug)

$1,000.00

Urethane In-Hull Transducer, 1kW, no plug

Miscellaneous Accessories

Miscellaneous Accessories

$1,100.00
28khz and/or 50khz Booster Box, 5kw
$850.00

Rectifier, 110/220VAC to 24VDC, 2.5 Amps

$860.00

Dedicated Interswitch Hub for NavNet 3D

$100.00
GO TO 001-605-510-00
$395.00
5-Port Ethernet Hub for NavNet

Recommended Additions

  • TZTBB

    $2,995.00

    NavNet TZtouch Black Box System less Multi Touch Display

    Details
  • MFDBB

    $9,795.00

    NavNet 3D Black Box Multi Function Display Processor W/O LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • RD33

    $695.00

    4.3" Color LCD Navigational Data Organizer - NMEA2000 & NMEA0183 compatible, w/6M NMEA2000 Cable

    Details
  • SC33

    $2,495.00
    Compact Dome Satellite Compass, NMEA2000 (0.4 degree Heading Accuracy) w/6M Cable
    Details

NavNet TZtouch Brochure

For more information, including dimensions and product specifications, download the brochure.

NavNet TZtouch2 Brochure

For more information, including dimensions and product specifications, download the brochure.
