GP1870F

No Longer Available

MSRP: $995.00

Price Less Transducer

7" GPS/WAAS Chart Plotter/Fish Finder w/Internal GPS Antenna

Display Size7 inches

Display TypeColor LCD

Power Usage12-24 VDC

Receiver TypeWAAS-GPS

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products GP1870F

Fast, powerful and easy to use

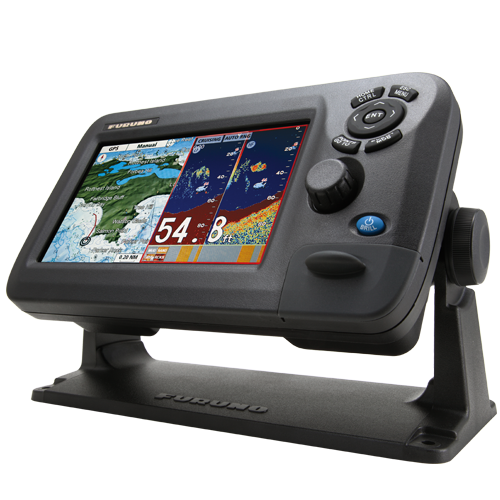

If you're looking for the finest all-in-one color LCD unit available, set a course for your nearest Furuno dealer. The fully integrated GP1870F GPS/Chart Plotter/Fish Finder is here! Compact, waterproof and durable, this unit delivers highly accurate data and crystal-clear pictures on its 7" wide format, color bonded LCD screen. The GP1870F incorporates the best of Furuno’s legendary line of Chart Plotters and adds a whole new set of user-friendly features.

Simple interface and stress-free operation

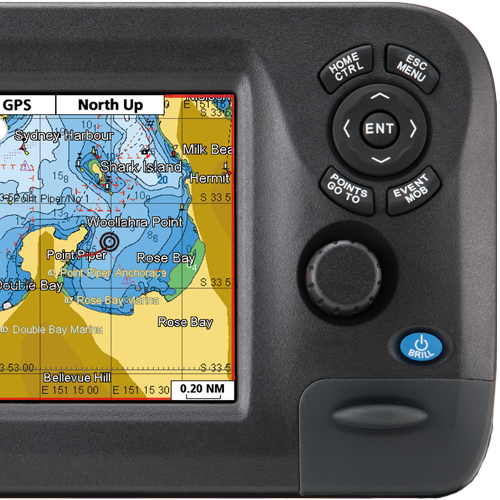

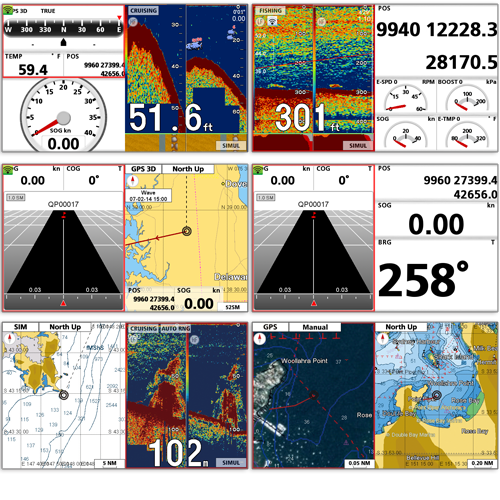

The GP1870F features an internal antenna for ease of installation. It’s dual-range display allows you to view both short and long ranges of your chart simultaneously in a split-screen presentation. Furuno’s RotoKey interface allows for simple and stress-free operation. Turn the RotoKey for a finely stepped zoom control, or press the knob for full access to the GP1870F controls. The LCD screen allows for viewing from virtually any angle, even while wearing polarized sunglasses, plus the screen is bonded to ensure fogging-free operation.

Built-in Fish Finder and selectable display modes

The GP1870F supports C-MAP 4D by Jeppesen charts. C-MAP 4D is a versatile, all-in-one charting solution that gives users of Furuno’s GP1870F specific content and features needed to optimize their time on the water. The C-MAP 4D charts provide cruisers and sailors with standard vector chart content plus dynamic raster chart presentations, 3D views, satellite images, exclusive Easy Routing and more. In addition, C-MAP 4D empowers the Furuno GP1870F with a range of additional detail, content and features developed especially for serious coastal and offshore fishermen.

The GP1870F incorporates a powerful 600W/1kW Furuno Fish Finder, and introduces a host of new features. Post-Processing Gain Control allows you to view changes to the Gain setting immediately for all returns on the screen, making it easier than ever to dial in your Fish Finder for local conditions, while the White Line feature shows you fish lying on or near the bottom at a glance.

Powerful Fish Finding tools including Bottom Discrimination & Accu-Fish

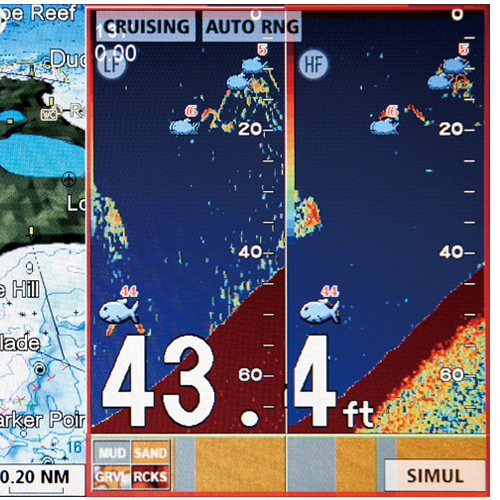

Whether fishing, diving, navigating or anchoring, knowing bottom type is a major advantage for virtually any boater. The advanced signal processing of the GP1870F's Fish Finder provides a graphical display of the water column and objects in the water, in addition to showing composition of the seafloor. When connected to an appropriate transducer, the Bottom Discrimination feature provides a graphical display showing the characteristics of the seafloor as either mud, sand, gravel or rock. Amazingly, it can also show a bottom type probability curve when boating in an area with mixed bottom composition.

The Accu-Fish feature is a revolutionary fish size assessment function that can tell you the approximate size of the fish below your boat. Fish symbols appear on the screen, along with the size of the fish or the depth where it found the fish. It can detect fish size from 4 inches up to about 6 feet long, in depths of 7 feet to well over 300 feet of water. Accu-Fish signal processing blends the high and low frequencies to depict fish targets of all types simply, clearly and distinctly. Now, fishermen can clearly and easily distinguish big billfish around a bait ball, or see through bait and trash fish on the surface to target "the big one" below.

  • Cables
  • Transducers
  • Bottom Discrimination Transducers
  • Miscellaneous Accessories
  • Manuals

Cables

Cables

$86.00
PWR CBL ASY GP1670/F GP1870/F
$35.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$39.00
NMEA2000 Micro Cable, 2 Meter, Male-Female connectors (straight)
$60.00
NMEA2000 Micro Cable, 6 Meter, Male-Female connectors (straight)
$25.00
NMEA2000 Micro Cable, 1 Meter, Female connector (straight) + Pigtail
$85.00
Antenna Cable Assembly, 2 x TNC-P, 15 Meters
$180.00
CBL NMEA2K MICRO 6M S-END
$80.00
Transducer Y-Cable, 10-Pin (F) to 10-Pin (M) and 6-Pin (M)

Transducers

Transducers

These transducers enable all standard Fish Finder features, but DO NOT support Bottom Discrimination. To utilize the Bottom Discrimination mode of the BBDS1 please select a transducer from the "Bottom Discrimination Transducers" list.
$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

$900.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

$400.00

Stainless Steel, Low-Profile Thru-Hull Transducer, 600W, 50/200KhZ

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$165.00

Bronze Thru-Hull Speed and Temp Sensor, 9 Meter Cable w/6-Pin Connector - Airmar B17 Housing Style Transducer

$105.00

Plastic Thru-Hull Speed and Temp Insert, 9 Meter Cable w/6-Pin Connector - Airmar P17 Housing Style Transducer

$70.00
Plastic Transom Clip-On Speed and Temp Sensor, 9 Meter Cable with 6-Pin Connect w/Bracket - Airmar P63 Housing Style Transducer
$175.00

Plastic In-Hull Transducer, 600W (10-Pin)

$175.00

Bronze Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$195.00
Bronze Thru-Hull, Low Profile, Transducer with Temp, 600W (10-Pin)
$225.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$225.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$50.00

Plastic Puck Transducer with Temp, for Trolling Motors, 600W (10-Pin)

$90.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

$650.00

Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)

$650.00

Transom Mount Transducer with Temp, 1kW (10-Pin)

$850.00

Urethane In-Hull Transducer, 1kW (10-pin)

$1,095.00

Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

$1,000.00
Stainless Steel Thru-Hull Transducer, 1kW (10 Pin)
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element

$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element

Bottom Discrimination Transducers

Bottom Discrimination Transducers

These transducers enable all Fish Finder features noted in the description, INCLUDING Bottom Discrimination. If you will not be using the Bottom Discrimination mode, we highly recommend selecting a transducer from the standard Transducer List. Note that the CA50/200-12M and CA50/200-1T require the use of MB1100 Transducer Matching Box.
$850.00

Rubber Coated Transducer, 1kW (No Plug)

$850.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$295.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

$175.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

$100.00

Plastic Transom Mount Transducer, 600W (10-Pin)

$325.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

$125.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

Miscellaneous Accessories

Miscellaneous Accessories

$25.00
NMEA2000 Micro Inline Terminator, Female
$100.00
FLUSH MOUNT GASKET GP1870/F
$100.00
BRACKET GP1870F
$70.00
HARD COVER GP1870F
$40.00
CLEANING CLOTH GP1670F GP1870F
$115.00

ADAPTER MOUNTING PLATE GP1870F

$125.00
Stub Mast Mounting Kit
$8.00

KNOB (BOLT) GP1670F GP1870F

$35.00
NMEA2000 T-Connector, Female/Female/Male
$12.00
NMEA2000 Micro Terminator, Male
$12.00
NMEA2000 Micro Terminator, Female
$125.00
GPS Antenna with 10 Meter Cable
$105.00
GPS Antenna Without Cable (Shielded/IMO Compliant)
$195.00

Interface Converter NMEA2000-NMEA0183

$175.00

Junction Box - NMEA2000

$350.00

Transducer Matching Box with 10pin Connector.

For Furuno Transducers only. Use Airmar Matching box for Airmar transducers.

Manuals

Manuals

$50.00
OPERATORS MANUAL GP1670F/1870F

Recommended Additions

  • LH5000

    $1,095.00
    30 Watt Loudhailer with LCD
    Details
  • NAVPILOT 711C

    $2,995.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details

GP1870F Brochure

For more information, including dimensions and product specifications, download the brochure.
