FAR2827

No Longer Available

MSRP: Call For Price

PRICE LESS ANTENNA

25 kW Transmitter, 96 NM Radar System with 23.1 Inch Color LCD Display, less Antenna - go to FAR2228BB

Antenna Size4 ft or 6.5 ft or 8 ft

Antenna TypeOpen Array

BandX-Band

Display Size23.1 inches

Display TypeColor LCD

Beam Width0.95 degrees or 1.23 degrees or 1.8 degrees

Power Usage100-115 VAC

Power Output25 kW

Range96 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR2827

Legendary Furuno Radar solutions

The revolutionary FAR28x7 series of X- and S-band Radars are the result of FURUNO's 50 years experience in marine electronics and advanced computer technology. This series of equipment is designed to meet the exacting standards of the International Maritime Organization (IMO) for ships of 10,000 GT and above.

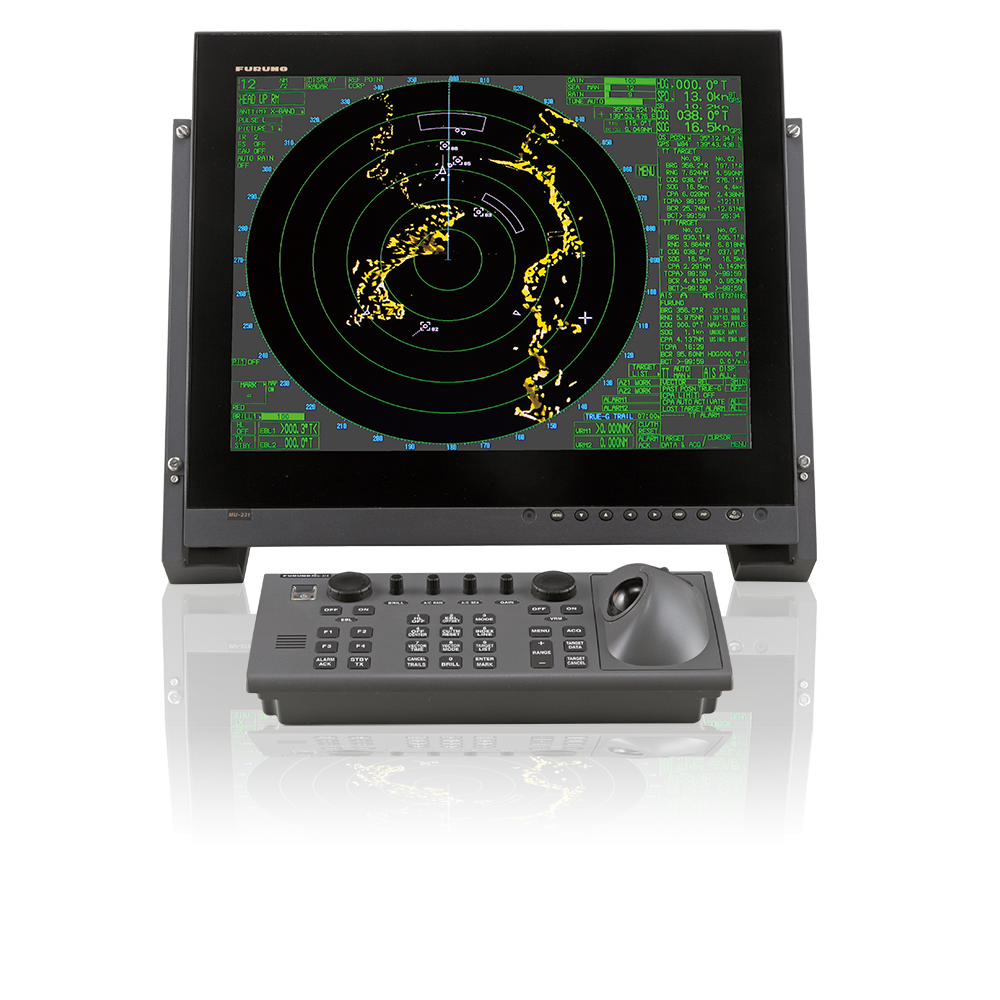

Beautiful color displays

The display unit employs a 23.1" LCD. It provides an effective picture diameter of larger than 340 mm. The SXGA monitor provides crisp Radar echoes, which are presented in a selected color with a day or night background color for easy observation in all lighting conditions. Different colors are assigned for marks, symbols and texts for user-friendly operations.

Unparallelled target detection

Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and Radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR28x7 series provide ARPA and AIS (transponder unit is required) function as a standard. A variety of antenna is selectable, from 4', 6.5' or 8' radiator. The rotation speed is selectable from 24 rpm for standard Radars or 42 rpm for HSC. The S-band Radar FAR2837S assures target detection in adverse weather where X-band Radar are heavily affected by sea or rain clutter.

*Note that the FAR2XX7 radar series has Wheelmark and MED Module B validity until 31 December 2020. Due to its late stage of maturity, the X7 series will not be brought into compliance with minor changes noted in IMO Circular CIR19-0024. Certain class societies may require products to be in compliance, be sure to check with local authorities on required approvals. The full citation of the regulations can be accessed here.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$8,195.00
Processor Unit 25kW & Up
$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

$11,295.00
24 RPM Gearbox with 25 kW Transceiver
$7,290.00

23.1" Color LCD Monitor w/o Bracket

$820.00

CABLE 30M RW9600 14C FAR2XX7

Note: List Price Credit for Standard Signal Cable Assembly is $325.00

$710.00
MU231 MOUNTING BRACKET

Choose an Antenna Array

Choose an Antenna Array

$2,440.00

Antenna, 4 Foot Open Array

$2,950.00

Antenna, 6.5 Foot Open Array

$3,950.00

Antenna, 8 Foot Open Array

Cables

Cables

The FAR2XX7 series radar maximum signal cable length using standard cable (RW9600) is 100M. For cable runs of between 101M and 200M, use P/N CBL-2X7-200 (200 meter cable). For cable runs of between 201M and 300M, use P/N CBL-2X7-300 (300 meter cable). Installation should include two optionally available junction boxes, P/N CBL-2X7-BOX.
$820.00

CABLE 30M RW9600 14C FAR2XX7

Note: List Price Credit for Standard Signal Cable Assembly is $325.00

$39.00
CABLE RW9600 14C FAR28X7/21X7*, PRICED PER METER
Call For Price
200M FAR2XX7 ANT CBL,100M+ RUN*
Call For Price
300M FAR2XX7 ANT CBL,201-300M*
$1,995.00

Junction Box for FAR2XX7 100M+ Antenna Cable Run

$150.00
DVI-D Cable Assembly, 5 Meters
$150.00
DVI-D/D S-LINK 5M CABLE ASSY
$125.00

DVI-D Cable Assembly, 10 Meters

$170.00
Cable Assembly, Control Unit to Processor, 10 Meters (6-Pair - For Newly Installed Radars)
$105.00
Cable Assembly, Control Unit to Control Unit, 10 Meters
$185.00
CBL 20M CONT TO CONT
$250.00
Cable Assembly, Control Unit to Control Unit, 30 Meters
$280.00
6 PAIR CONN CBL 20M CONT/PRCSR
$360.00
6 PAIR CONN CBL 30M CONT/PRCSR
$150.00
LAN CABLE 10M FR-FTPC-CY DRU'S
$430.00
CBL LAN FR-FTPC-CY 20M W/O CON*
$250.00

LAN CABLE 20M FR-FTPC-CY DRU'S

$400.00
LAN CABLE 30M FR-FTPC-CY DRU'S
$115.00
I/C CBL 1.5M EG3000/FAR2XX7
$25.00
NULL MODEM CABLE 9P F TO 9P F

Related Products

Related Products

$11,995.00

FAR2XX7 CHART RADAR OPTION *

$4,995.00

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

$9,995.00

4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

$2,495.00
Compact Dome Satellite Compass, NMEA2000 (0.4 degree Heading Accuracy) w/6M Cable

Miscellaneous Accessories

Miscellaneous Accessories

List Price Credit for Standard Antenna Motor Assembly $650.00. The fee to perform the 42 RPM motor conversion is three hours at the current labor rate.
$900.00

Memory Card Reader Interface

$12,590.00
GEARBOX 25KW 24RPM DEICER*
$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

$1,150.00

Trackball Control Unit & 10m Cable with Power Switch

$1,350.00
Trackball Control Unit w/attached 10m Cable without Power Switch
$0.01
FURUNO ANTENNA PEDESTAL*
$2,700.00
Universal Pedestal for FAR22x8BB, FAR3x00 and FAR2xx7
$2,000.00
Table Top Mount for FAR Series Radars and FMD Series ECDIS
$650.00

Gyro Converter

$810.00
Interswitch Hub
$2,930.00

Performance Monitor, X-Band

$31.60
WAGO Plug, 14-Pin TB801 O3P9349
$27.50
WAGO Plug, 12-Pin TB803 03P9349
$3.00
WAGO Tool, Small
$3.00
WAGO TOOL BIG
$340.00
MINI RAM CARD NAVNET FAR2XX7*
Call For Price
RF MODULE RTR079A FAR2X27
$175.00
GREASE OP03-189-2 FAR2827
$125.00

Display Handles for FAR2XX7 Displays MU190 and MU231, 2 each.

$1,495.00

DVI-RGB Converter Kit for FAR2XX7 Series Radar

$15.00
XH Connector Assembly 032102(7P)
$695.00
Display and Keyboard Combining Kit, MU231
Call For Price
RADIATOR BRACKET RSB104/105N RB
$185.00
Display Dust Cover
$285.00
RESISTOR MOUNTING BRKT FAR2X27

Manuals

Manuals

$40.00
Installation Manual, FAR2XX7 Series
$50.00
Operator's Manual, FAR2XX7 Series
