GP170D

MSRP: $2,895.00

GPS Navigator with DGPS Installed

Data TypeNMEA0183 and IEC61162-450

Display Size5.7 inches

Display TypeColor LCD

Power Usage12-24 VDC

Receiver TypeGPS or DGPS

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products GP170D

Highly stable position fixing for seagoing vessels

Furuno’s GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. Its newly designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized.

BAM-Ready

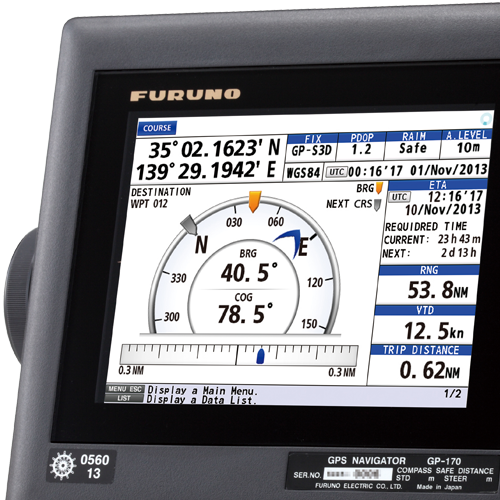

The GP170 is BAM (Bridge Alert Management) ready and boasts a variety of display modes, including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

  • Cables
  • Miscellaneous Accessories
  • Manuals

Cables

Cables

$950.00
ANT CBL ASSY 50M SC50 SC110*
$85.00
NMEA Cable, 1 x 7 Pin Connector, 5 Meters
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

Miscellaneous Accessories

Miscellaneous Accessories

$150.00
GS100 Flush Mount Kit, S-type OP20-41
$155.00
GS100 Flush Mount Kit, F-type OP20-41
$300.00

GPS/DGPS H-Field Antenna for GP170D

$995.00

Multi-Port Data Distribution Unit, with Eight Outputs

Manuals

Manuals

$40.00
INST MANUAL GP170D
$50.00
OP MANUAL GP170D

Recommended Additions

  • FAR2127

    Call For Price

    25 kW Transmitter, 96 NM Radar System with 19" Color LCD Display, less Antenna

    Details
  • FMD3200

    Call For Price

    Electronics Chart Display and Information System (ECDIS) w/19" Display

    Details
  • DS80

    $10,495.00

    1 mHz, IMO Compliant Doppler Speed Log with Transducer and Flush Mounting Tank

    Details
  • FCV1150

    $5,195.00

    12.1 Inch Color LCD Sounder, Less Transducer

    Details

GP170 Brochure

For more information, including dimensions and product specifications, download the brochure.
