SC70

MSRP: $4,595.00

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

Data TypeNMEA0183

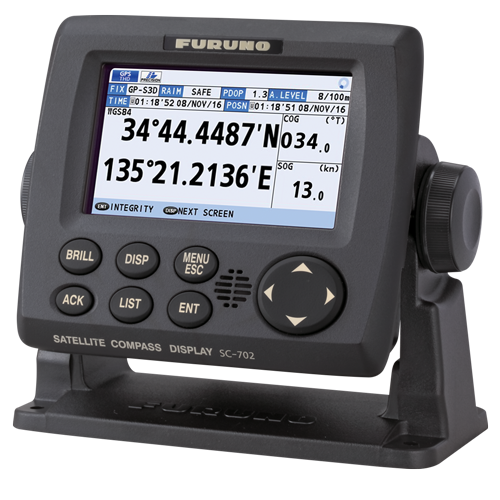

Display Size4.3 inches

Display TypeColor LCD

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products SC70

Precise and accurate Heading

The SC70 and SC130 are the latest satellite compasses built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.

Bow and Stern monitoring for safe berthing

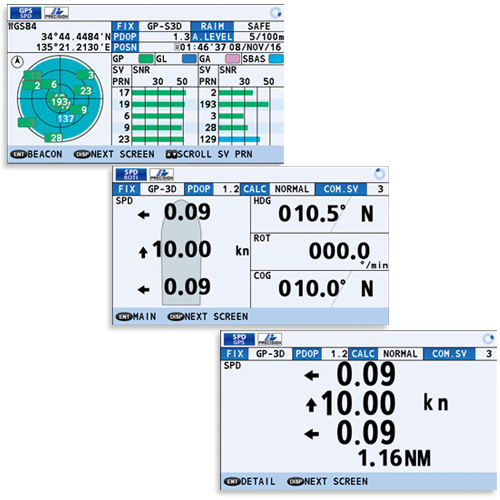

The Satellite Compass provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The Compass is maintenance-free - a great asset for any vessel - and connects easily into the existing shipboard network via Ethernet connection.

IMO Type Approved as THD, GPS and ROTI

The SC70 provides highly accurate heading data of 0.4° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for small to medium boats requiring highly accurate heading, and is IMO Type-approved as THD, GPS and ROTI, complying with the IEC/ISO requirements. It features a rapid follow-up rate 40°/s, twice the IMO high-speed craft requirement of 20°/s.

  • Product Consists Of
  • Choose an Antenna Cable
  • Cables
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

The SC70 and SC130 are sold without an antenna cable. Please see the antenna cable options listed under Choose an Antenna Cable.
$1,595.00
JUNCTION BOX FOR SC70/SC130
$1,000.00
DISPLAY UNIT FOR SC70/SC130
$2,000.00
ANT 2GPS/ANG/ACCEL/MGNT SNSR

Choose an Antenna Cable

Choose an Antenna Cable

The SC70 and SC130 are sold without an antenna cable. Please select from the following antenna cable options:
$375.00

15m cable with pre-molded connectors for connection to antenna and processor

$470.00

30m cable with pre-molded connectors for connection to antenna and processor

$280.00

15m cable - connector kits are included for both ends of the antenna cable (to be attached by installer)

$460.00

30m cable - connector kits are included for both ends of the antenna cable (to be attached by installer)

$680.00

30m armored cable - connector kits are included for both ends of the antenna cable (to be attached by installer)

$890.00

40m armored cable - connector kits are included for both ends of the antenna cable (to be attached by installer)

$1,100.00

50m armored cable - connector kits are included for both ends of the antenna cable (to be attached by installer)

Cables

Cables

$250.00

LAN CABLE 20M FR-FTPC-CY DRU'S

$350.00
LAN CABLE 30M FR-FTPC-CY DRU'S

Miscellaneous Accessories

Miscellaneous Accessories

$160.00
DISPLAY FLUSH MOUNT KIT FA1702
$20.00
FA1702 FLUSH MOUNT CUSHION KIT
$40.00
WATERPROOF REAR KIT FA170
$780.00
GO TO 001-516-110-00
$780.00
GO TO 001-516-120-00
$30.00
NO LONGER AVAILABLE
$380.00
NO LONGER AVAILABLE
$850.00
INTERFACE UNIT GP150 ALARM
$800.00

SC30 CNVTR IF-NMEASC-0183/AD10*

$975.00

Rectifier, AC to 24 VDC

$35.00
NMEA2000 T-Connector, Female/Female/Male
$25.00
NMEA2000 Micro Cable, 1 Meter, Female connector (straight) + Pigtail
$50.00
NMEA2000 Micro Cable, 6 Meter, Female connector (straight) + Pigtail
$50.00
TERMINATOR RESISTOR(MINI)
$26.50
BIRD REPELLENT FIXTURE SC50 *

Recommended Additions

  • DRS4D

    $2,300.00

    4kW, 36 n.m., 24" UHD Digital Radome for NavNet 3D, TZtouch and TZtouch2

    Details
  • TZTL12F

    $3,695.00

    NavNet TZtouch2 Chart Plotter/Fish Finder, 12" Touch Screen Display

    Details
  • TZTL15F

    $5,495.00

    NavNet TZtouch2 Chart Plotter/Fish Finder, 15" Touch Screen Display

    Details
  • FCV1150

    $5,195.00

    12.1 Inch Color LCD Sounder, Less Transducer

    Details

SC70 and SC130 Brochure

For more information, including dimensions and product specifications, download the brochure.
