Black Box Full-Circle Scanning Sonar, 85kHz, less hoist and shaft

Display SizeBlack Box

Display TypeBlack Box

Frequency85 kHz

Power Usage100-115-120-220-230 VAC

Range1600 m

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CSH8LMK2

A compact, mid-frequency Sonar with revolutionary fish and seabed discrimination

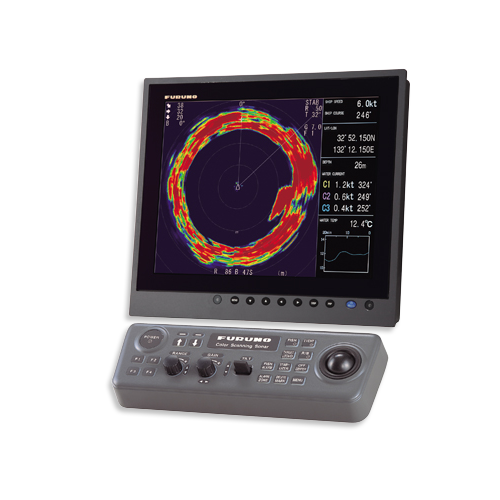

The CSH8LMK2 is a Full-Circle Scanning Sonar that rapidly detects fish schools, individual fish, and changing underwater conditions. Fish distribution and seabed conditions are displayed in 16 colors, 360 degrees around the vessel. The Sonar components consist of a standard 600mm stroke hull unit (400mm option available), a transceiver unit, and a processor unit.

Operating at 85 KHz, the CSH8LMK2 is considered a mid- frequency Sonar. Its narrow beam width coupled with its enhanced target identification capabilities make it ideal for searching near the vessel or in shallow waters. Fish and bottom echoes are clearly separated and bait fish are more easily tracked. With automatic tilt scanning as a standard feature, the CSH8LMK2 is suitable for both midwater trawlers and purse seiners.

The Sonar's compact keyboard and Black Box configuration are designed to offer a flexible installation, and a variety of monitors are available to suit your installation and operational requirements. FURUNO's MU-series Marine Monitors are specially designed to meet the requirements of marine professionals around the world. For a second station, an additional display and a small remote controller can be simply plugged into the processor unit.

What is Scanning Sonar?

The transducer arrangement consists of layers of elements. Each element is pointed in a slightly different direction which allows the Sonar to transmit 360 degrees simultaneously without rotating the transducer. The targets are redrawn on the display instantaneously according to the latest echo received from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for or following fast swimming fish.

On a 1000ft range Sonar updates the display 360 degrees every 0.54 seconds, while the conventional PPI sonar takes 32 seconds to train full circle under the same range/conditions. For the same range, Scanning sonars are capable of providing information that is about 60 times more comprehensive than PPI sonars. Faster target updating lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.

User-friendly, ergonomic controller

The control unit combines ergonomics and function in a user-friendly, comfortable configuration. All controls respond quickly to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation. An optional handheld remote controller allows for control of tilt, range and gain functions.

Traditional Sonar display

Navigation data can be displayed in the text window, with connection of appropriate sensors. The operator can place Event Marks on targets to better help tracking schools of fish or other objects of interest.

Sonar + Echo Sounder display

The Sonar picture appears on the left and the signal fed from the Echo Sounder at the lower right side of the screen. This mode is suitable for judging fish school concentration.

Sonar + Audio display

The Sonar picture appears on the left and the Audio display at the lower right side of the screen. This mode is useful for analyzing echoes in a desired area

  • Product Consists Of
  • Choose Sonar Hoist
  • Cables
  • Sonar Shafts And Hull Tubes
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

MUST ADD SONAR HOIST AND SONAR SHAFT
$7,495.00
PROC/CONT CSH5LMK2 CSH8LMK2
Call For Price
TRANSCEIVER UNIT FOR CSH8LMK2
Call For Price
XDCR 85KHZ 6500MM CBL CSH8L
$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$135.00
RGB VIDEO CABLE 5M
$650.00
CBL ASSY S10-15 10M CSH8L
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
$3,600.00
HULL UNIT ASSY PARTS CSH8L

Choose Sonar Hoist

Choose Sonar Hoist

***MUST ADD SONAR HOIST***
$4,975.00

HOIST UNIT 600MM TRVL CSH8LMK2

$4,975.00
HOIST UNIT 400MM TRVL CSH8LMK2

Cables

Cables

$170.00
Signal Cable Assembly, MS100 & BS704, 10 Meters
$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
$200.00
CBL ASSY 3COX-2P-6C 10M CSH5L
$325.00
CBL ASSY S10-15 5M CSH8L
$650.00
CBL ASSY S10-15 10M CSH8L
$760.00
Cable Assembly, Display/Processor to Transceiver (S10-6-15), 15 Meters
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
$1,990.00
Cable Assembly, Display/Processor to Transceiver (S10-6-50), 50 Meters
$340.00
10M CBL CSH5211

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

***MUST ADD SONAR SHAFT***
$1,150.00
SHAFT 945MM CSH5L/8LMK2 3.1FT*
$2,950.00
2350mm Stainless Steel Soundome Shaft
$2,950.00
4065mm Stainless Steel Soundome Shaft
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.

Marine Monitors

Marine Monitors

$5,295.00

15" Color LCD Monitor w/o Bracket

$6,195.00

19" Color LCD Monitor without bracket

$5,795.00
15" Color LCD Marine Monitor
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

$4,975.00
HOIST UNIT 400MM TRVL CSH8LMK2
$1,510.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

$650.00

Clinometer with 10 Meter Cable Assembly

$540.00
REMOTE CONTROL UNIT HH CSH5LBB
$9,160.00
XDUCER CBL EXT. KIT CSH8LMK2
$395.00
VIDEO INTERFACE VGA CSH8LMK2*
$420.00
Interface Converter NMEA2000-NMEA0183 for CSH8LMK2
$115.00
SPEAKER/EXTERNAL TYPE SEM-21Q
$245.00
TRACKBALL ASSY EUA-FTF814B FAR28X5
$50.00
TRACKBALL COVER 10-044-3104-0 ROHS
$20.00
NH-XH CONNECTOR ASSY 10-691(6-6P)
$40.00
U-GASKET FU0694KO
$65.00
GREASE/COTTON SMALL SOUNDOMES, 3.6 METERS
$265.00
ZINC RING FOR MAIN SHAFT CSH5
