CSH8LMK2

MSRP: Call For Price

MUST ADD SONAR HOIST AND SONAR SHAFT

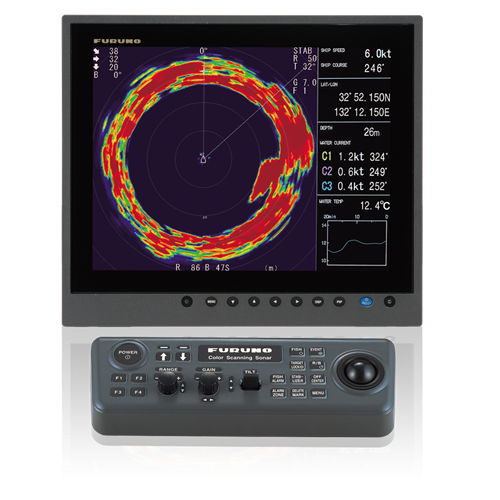

Black Box Full-Circle Scanning Sonar, 85kHz, less hoist and shaft

Display SizeBlack Box

Display TypeBlack Box

Frequency85 kHz

Power Usage100-115-120-220-230 VAC

Range1600 m

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support CSH8LMK2

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products
  • Product Consists Of
  • Choose Sonar Hoist
  • Cables
  • Sonar Shafts And Hull Tubes
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

MUST ADD SONAR HOIST AND SONAR SHAFT
CSH5210A/5211A
$7,495.00
PROC/CONT CSH5LMK2 CSH8LMK2
CSH8030A-8L/85
Call For Price
TRANSCEIVER UNIT FOR CSH8LMK2
CSH8XDR/85/66
Call For Price
XDCR 85KHZ 6500MM CBL CSH8L
MS100
$1,575.00

Motion Sensor with 10 Meter Cable Assembly

001-077-230-10
$135.00
RGB VIDEO CABLE 5M
006-800-520-00
$650.00
Cable Assembly, S10-15, 10 Meters, CSH8L
006-976-590
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
007-022-620-00
$3,600.00
HULL UNIT ASSY PARTS CSH8L

Choose Sonar Hoist

Choose Sonar Hoist

***MUST ADD SONAR HOIST***
CSH8040A
$4,975.00

HOIST UNIT 600MM TRVL CSH8LMK2

CSH8041A
$4,975.00
HOIST UNIT 400MM TRVL CSH8LMK2

Cables

Cables

006-591-760
$181.00
Signal Cable Assembly, MS100 & BS704, 10 Meters
MS1-CBL-15M
$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
MS1-CBL-30M
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
MS1-CBL-50M
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
001-077-220
$214.00
Cable Assembly, 3COX-2P-6C, 10 Meters, CSH5L
006-800-510-00
$346.00
Cable Assembly, S10-15, 5 Meters, CSH8L
006-800-520-00
$650.00
Cable Assembly, S10-15, 10 Meters, CSH8L
006-976-580
$810.00
Cable Assembly, Display/Processor to Transceiver (S10-6-15), 15 Meters
006-976-590
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
006-976-600
$2,127.00
Cable Assembly, Display/Processor to Transceiver (S10-6-50), 50 Meters
000-146-509-10
$359.00
10M Cable Assembly CSH5211

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

***MUST ADD SONAR SHAFT***
CSH5SHAFT/945MM
$1,550.00
SHAFT 945MM CSH5L/8LMK2 3.1FT*
CSH5SHAFT/2
$2,950.00
2350mm Stainless Steel Soundome Shaft
CSH5SHAFT/4
$2,950.00
4065mm Stainless Steel Soundome Shaft
TUBE/S1901
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
TUBE/S1918
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
TUBE/S1935
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
TUBE/A1901
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
TUBE/F1901
$2,500.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
TUBE/F1918
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.

Marine Monitors

Marine Monitors

MU150HD
$5,295.00

15" Color LCD Monitor w/o Bracket

MU190HD
$6,195.00

19" Color LCD Monitor without bracket

MU152HD
$5,795.00
15" Color LCD Marine Monitor
MU192HD
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

CSH8041A
$4,975.00
HOIST UNIT 400MM TRVL CSH8LMK2
AD100
$1,510.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

BS704
$650.00

Clinometer with 10 Meter Cable Assembly

CSH5211A/5
$2,195.00
CSH5L Control Unit w/5 Meter Cable
CSH7040
$540.00
REMOTE CONTROL UNIT HH CSH5LBB
CSH1700
$9,160.00
XDUCER CBL EXT. KIT CSH8LMK2
VI-CSH8L
$395.00
VIDEO INTERFACE VGA CSH8LMK2*
IF-NMEA2K2-8L
$420.00
Interface Converter NMEA2000-NMEA0183 for CSH8LMK2
001-208-540-00
$121.00
SPEAKER/EXTERNAL TYPE SEM-21Q
000-197-218-10
$261.00
TRACKBALL ASSY EUA-FTF814B
100-111-920-10
$52.00
TRACKBALL COVER 10-044-3104-0 ROHS
006-904-940-00
$20.00
NH-XH CONNECTOR ASSY 10-691(6-6P)
000-171-682-10
$41.00
U-GASKET FU0694KO
000-177-698-10
$69.00
GREASE/COTTON SMALL SOUNDOMES, 3.6 METERS
000-802-966
$280.00
ZINC RING FOR MAIN SHAFT CSH5
