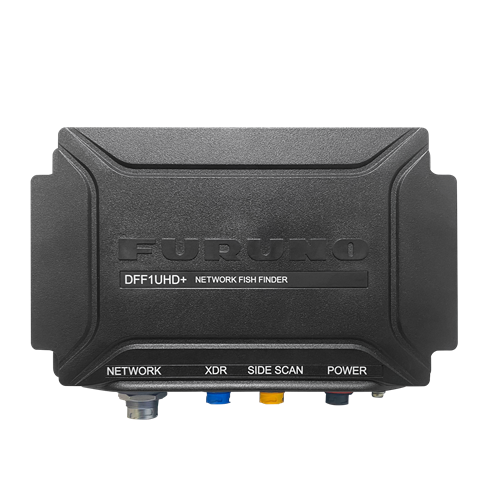

DFF1UHD+
MSRP: $1,295.00
Black Box TruEcho CHIRP with Side Scan
Display SizeBlack Box
Display TypeBlack Box
FrequencyCW 50-200 kHz and CHIRP 40-225 kHz and CHIRP Side-Scan 230 or 455 kHz
Power Usage12-24 VDC
Power Output150 W or 300 W or 600 W or 1 kW
Range4000 ft
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Can't find what you are looking for?
Maybe try the forum or register your product.
Software Downloads
Download our latest drivers, software, and instructional software files for this product view Terms and Conditions
Software for DFF1UHD+
- Cables
- CHIRP Side-Scan Transducers
- CHIRP Transducers
- Transducers
- Bottom Discrimination Transducers
Cables
Cables
CHIRP Side-Scan Transducers
CHIRP Side-Scan Transducers
CHIRP Transducers
CHIRP Transducers
Transducers
Transducers
These transducers enable all standard Fish Finder features including RezBoost, but DO NOT support Bottom Discrimination.
To utilize the Bottom Discrimination mode of the MFD please select a transducer from the "Bottom Discrimination Transducers" list.
Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer
Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)
Stainless Steel Thru-Hull, Flush Mount Transducer, 600W (10-Pin), 20° Tilted Element
Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element
Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)
Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element
Bottom Discrimination Transducers
Bottom Discrimination Transducers
These transducers enable all Fish Finder features noted in the description, INCLUDING Enhanced RezBoost and Bottom Discrimination.
If you will not be using the Bottom Discrimination mode, you can also select a transducer from the standard Transducer List.
Note that the CA50/200-12M and CA50/200-1T require the use of MB1100 Transducer Matching Box.
Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer
Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element
Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)
