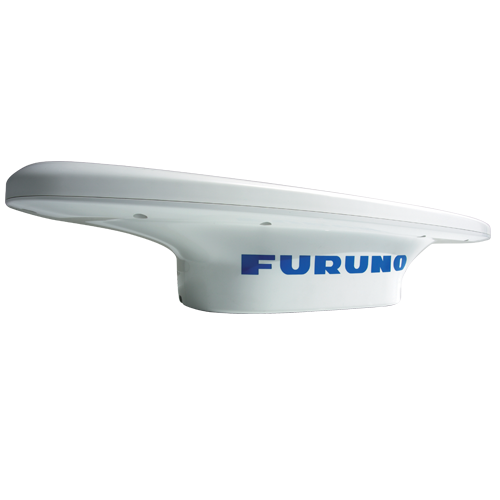

SC30

No Longer Available

MSRP: $2,495.00

Compact Dome Satellite Compass, NMEA2000 (1.0 degree Heading Accuracy) w/6M Cable

Display SizeBlack Box

Display TypeBlack Box

Power Usage12 VDC or 24 VDC

Receiver TypeGPS

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products SC30

Sleek, fast and accurate

The SC30 Satellite Compass provides highly accurate attitude information for navigation equipment such as radar, plotter, autopilot, fish finder and sonar. With its compact GPS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.

Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC30 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.

Revolutionary 2-antenna and rate sensor system

In order to calculate roll & pitch data, a satellite compass requires two vectors. The SC30 employs a 2-antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC30 to calculate highly accurate roll and pitch data without using a third sensor. The SC30 employs the LAMBDA algorithm developed by Prof. Teussen, Delft University of Technology, The Netherlands.

  • Cables
  • Miscellaneous Accessories
  • Manuals

Cables

Cables

$15.00
CBL .3M NMEA2K MICRO M-F CON
$30.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$35.00
NMEA2000 Micro Cable, 2 Meter, Male-Female connectors (straight)
$60.00
NMEA2000 Micro Cable, 6 Meter, Male-Female connectors (straight)
$100.00
NMEA2K: 6M CABLE ASSY SC30*
$175.00
NMEA2K 15M SC30 BACKBONE CABLE
$250.00
NMEA2K 30M SC30 BACKBONE CABLE

Miscellaneous Accessories

Miscellaneous Accessories

$26.50
BIRD REPELLENT FIXTURE SC50 *
$35.00
NMEA2000 T-Connector, Female/Female/Male
$12.00
NMEA2000 Micro Terminator, Male
$12.00
NMEA2000 Micro Terminator, Female
$25.00
NMEA2000 Micro Field Connector, Male
$800.00

SC30 CNVTR IF-NMEASC-0183/AD10*

$12.00
TERMINATOR RESISTOR DRS2D
$175.00

Junction Box - NMEA2000

$195.00

Interface Converter NMEA200-NMEA0183

$870.00
COVER ASSY SC30

Manuals

Manuals

$17.95
OPERATORS MANUAL SC30
