FICE100/FOIL200
MSRP: Call For Price
Ice/Oil Navigation Radar
Antenna Size4 ft or 6.5 ft or 8 ft
Antenna TypeOpen Array
BandX-Band
Display TypeColor LCD
Beam Width0.95 degrees or 1.23 degrees or 1.8 degrees
Power Usage115 or 230 VAC
Power Output12 kW or 25 kW or 50 kW
Range96 nm
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Combination Ice and Oil Detection Radar!

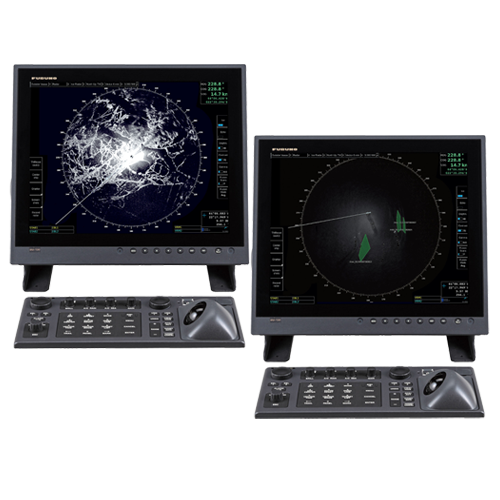

The Furuno FICE100/FOIL200 Ice/Oil Detection Radar is connected to standard Furuno FAR2xx7, FAR2xx8, FAR15x8, or FAR3000 X-band navigation Radar.
The Ultimate in Ice Detection Radar
The Furuno FICE100 Ice Detection Radar is connected to standard Furuno FAR2xx7, FAR2xx8, FAR15x8, or FAR3000 X-band Navigation Radar. Ice Radar displays the ice conditions by removing image noise, making the fine structures of the ice more visible. Hybrid Ice Radar captures the raw Radar signal from the ARPA processor. The result is a stable image that includes the fine details found in the Radar echoes.
By using Ice Radar, vessels can find the old rifts, clean ice and channels made by icebreakers and other vessels. Finding and using these, the vessel consumes much less power and saves fuel and time!
Powerful alternative to an Infrared camera
Infrared cameras are challenging to maintain in icy conditions. Ice Radar is a supplementary system for Navigation Radar to observe ice conditions using the same outdoor equipment.
Click here to learn more about the FICE100 Radar at furuno.fi
Oil Radar for offshore and onshore installations
FOIL200 Oil Spill Detection Radar is connected to standard Furuno FAR2xx7, FAR2xx8, FAR15x8, or FAR3000 X-band navigation radar. Oil Spill Detection Radar can be used in offshore and onshore installations together with standard Navigation Radar. The installation can be done onboard the vessels, oil rigs or any other platform where the Radar is needed to detect oil spills.
Mark oil spills, process and analyze raw Radar video
The Oil Radar detects oil spills automatically and creates a polygon to mark the spill. You can mark the oil spills manually with polygons and update them whenever it is required. You can also take screenshots from the screen and record the raw Radar video to the external hard disc or memory stick for future evaluation or training purpose.
FOIL200 uses raw Radar video from the Navigation Radar. The special, high-performance algorithm is used to process and analyze the raw video to detect oil spills. To achieve the most efficient image to detect oil, you can change between different Fusion modes and see the result in real time on the screen. Oil spill image is created with an integration of up to 100 Radar antenna scans. Generated image is based on motion compensated Fusion scans. Adjust the Fusion Scan number together with Fusion Mode.
