FICE100

MSRP: Call For Price

Ice Navigation Radar

Antenna Size4 ft or 6.5 ft or 8 ft

Antenna TypeOpen Array

BandX-Band

Display TypeColor LCD

Beam Width0.95 degrees or 1.23 degrees or 1.8 degrees

Power Usage115 or 230 VAC

Power Output12 kW or 25 kW or 50 kW

Range96 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FICE100

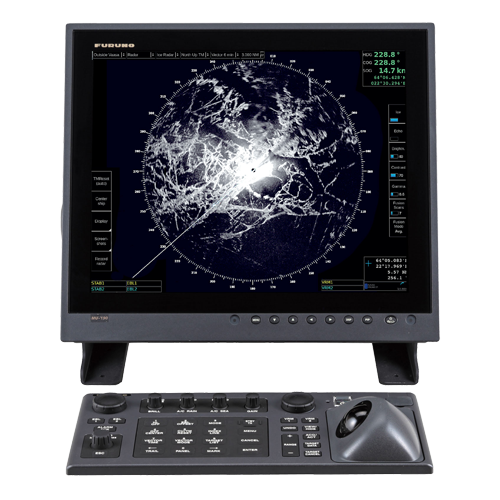

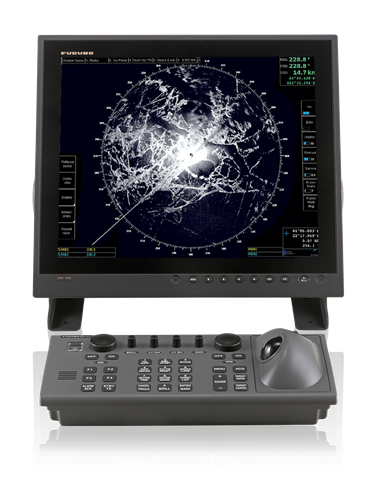

The Ultimate in Ice Detection Radar

The Furuno FICE100 Ice Detection Radar is connected to standard Furuno FAR2xx7 or FAR3000 X-band Navigation Radar. Ice Radar displays the ice conditions by removing image noise, making the fine structures of the ice more visible. Hybrid Ice Radar captures the raw Radar signal from the ARPA processor. The result is a stable image that includes the fine details found in the Radar echoes.

By using Ice Radar, vessels can find the old rifts, clean ice and channels made by icebreakers and other vessels. Finding and using these, the vessel consumes much less power and saves fuel and time!

Powerful alternative to an Infrared camera

Infrared cameras are challenging to maintain in icy conditions. Ice Radar is a supplementary system for Navigation Radar to observe ice conditions using the same outdoor equipment.

Click here to learn more about the FICE100 Radar at furuno.fi

  • Cables

Cables

Cables

$700.00
5M I/C CBL FOIL FICE TO FAR2XX7
$900.00
10M I/C CBL FOIL FICE TO FAR2XX7
$700.00
5M I/C CBL FOIL FAR3XXX FAR2XX8
$1,100.00
15M I/C CBL FOIL FAR3XXX FAR2XX8
$1,600.00
30M I/C CBL FOIL FAR3XXX FAR2XX8
$2,300.00
50M I/C CBL FOIL FAR3XXX FAR2XX8

Recommended Additions

  • FAR2117

    Call For Price

    12 kW Transmitter, 96 NM Radar System with 19" Color LCD Display, less Antenna

    Details
  • FAR2127

    Call For Price

    25 kW Transmitter, 96 NM Radar System with 19" Color LCD Display, less Antenna

    Details
  • FAR2827

    Call For Price

    25 kW Transmitter, 96 NM Radar System with 23.1 Inch Color LCD Display, less Antenna

    Details
  • SC130

    $11,095.00

    4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

    Details
  • GP170D

    $3,295.00

    GPS Navigator with DGPS Installed

    Details
View All

FICE100 Brochure

For more information and product specifications, download the brochure.
