FE800

MSRP: $5,795.00

Price Less Transducer

Color IMO Navigation Echo Sounder

Display Size8.4 inches

Display TypeColor LCD

Frequency50 and 200 kHz

Power Usage100-115-120-220-230 VAC

Power Output1 kW

Range800 m

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FE800

Display the clearance below the ship

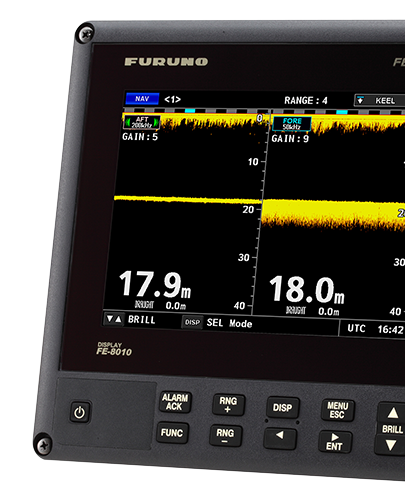

The FE800 is a result of Furuno's many decades of experience developing echo sounders, sonars, and underwater application equipment and systems. This echo sounder is a breakthrough over the conventional paper sounders; there are no consumable items. The purpose of the echo sounder is to provide safe navigation by detecting the clearance below the ship (particularly in shallow waters) as required on the SOLAS Convention ships by the new IMO standards. The basic system consists of a display unit and distribution box. The 8.4" high-brightness color LCD display offers an easy-to-read depth sounding in various modes, permitting optimum representation with respect to the environment.

Stay informed with visual and audible alerts

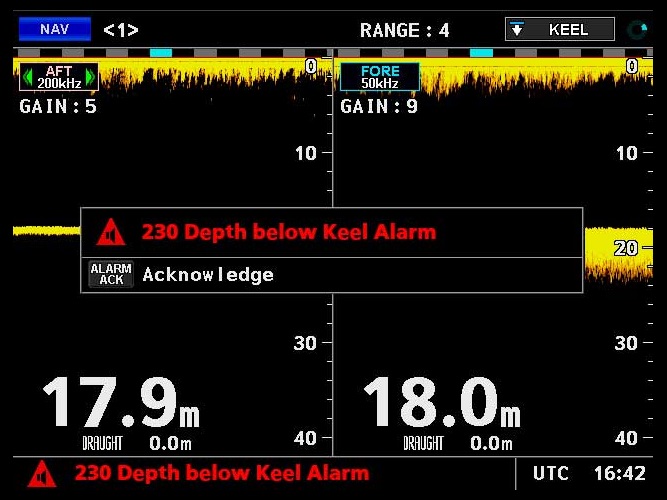

The FE800 generates alerts when the water depth below the transducer is shallower than the preset depth. When the seabed is lost due to the lowered power supply or out of range scale, an alert is generated. The receiver sensitivity is automatically controlled with the tracking depth; manual override is possible to improve the detection and to reduce the surface clutter.

Providing mission critical data at your fingertips

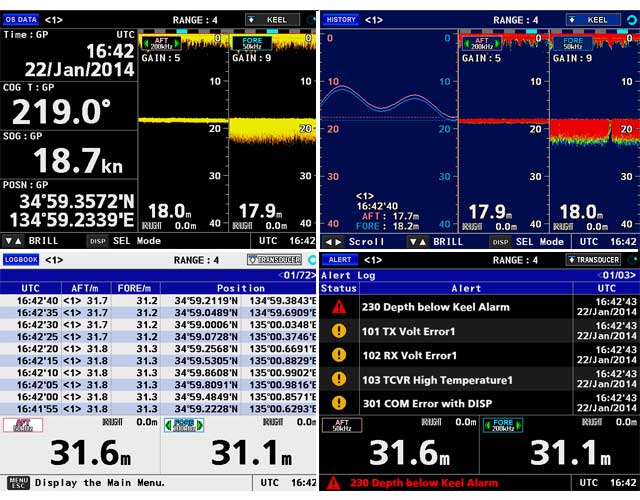

Own Ship Data
View your Own Ship Data (OS Data) when the FE800 is connected to an external GPS Navigator.

History
Display a combination of Contour and Strata echo readings in preset intervals of 5 seconds, 1 minute or 2 minutes.

Logbook
Display the stored time, depth and own ship position. The logbook is capable of storing data for up to 720 log entries.

Alert Log List
Displays up to 100 alerts stored in history.

  • Product Consists Of
  • Cables
  • Related Products
  • Transducers
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$2,650.00
FE8010, DISPLAY UNIT, FE800
$3,145.00
TRANSCEIVER UNIT, FE800

Cables

Cables

$25.00
TTYCSLA-4 FOUR PAIR LOW SMOKE
$38.00
DPYCSLA-2.5 Transducer Extension Cable, Armored

Related Products

Related Products

$795.00
External Printer for NX900 NAVTEX Receiver, FE800 Echo Sounder, and GP170 EPFS
$850.00
INTERFACE UNIT GP150 ALARM
$2,095.00

8.4” Color LCD remote display that displays a wide variety of data

Transducers

Transducers

$280.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$555.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)

$810.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)

$435.00

Rubber Coated Transducer, Type 200B-8B, 2kW, 15m Cable (No Plug)

$745.00

Rubber Coated Transducer, Type 200B-8B, 2KW, 30m Cable (No Plug)

$910.00

XDCR 200B-8B W/50M CBL 200KHZ

Miscellaneous Accessories

Miscellaneous Accessories

IF2550/1 or IF2550/2 required for PP900 interface
$795.00
External Printer for NX900 NAVTEX Receiver, FE800 Echo Sounder, and GP170 EPFS
$375.00
Mounting Bracket and Knobs
$50.00
HARD COVER DS600 FE800
$125.00
DATA RECORDING SOFTWARE FE800
$450.00
MATCHING BOX MB502 F/50B-6B
$450.00
MATCHING BOX MB504 CA200B-8B
$14,495.00

Gate Valve and Tank 50B-6B

Call For Price
GATE VALVE AND TANK 50B-6B DNV
$14,495.00

Gate Valve and Tank 200B-8B

$4,950.00
Ice Protected Combo Tank 50KHZ
$2,320.00

Transducer Sea Chest, 20mm Steel with Thru-Hull Tube for CA50B-6B

$2,130.00

Transducer Sea Chest, 20mm Steel with THT for CA200B-8B

$155.00
WATERPROOF XDCR J-BOX IMO FE700

Manuals

Manuals

$40.00
INST MANUAL FE800
$50.00
OP MANUAL FE800

Recommended Additions

  • RD50

    $2,095.00

    8.4” Color LCD remote display that displays a wide variety of data

    Details
  • GV200B-8B

    $14,495.00

    Gate Valve and Tank 200B-8B

    Details
  • GV50B-6B

    $14,495.00

    Gate Valve and Tank 50B-6B

    Details
  • RD20

    $1,150.00

    Red LED Remote Display without Bracket

    Details

FE800 Brochure

For more information, including dimensions and product specifications, download the brochure.
