FCV1900B

MSRP: $11,495.00

Price Less Transducer

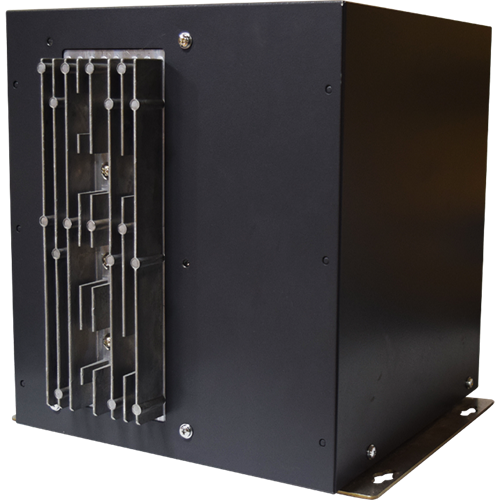

Black Box Hi-Res TruEcho CHIRP Fish Finder

Display SizeSupplied Separately

Display TypeSupplied Separately

FrequencySelectable

Power Usage12-24 VDC

Power Output1 kW or 2 kW or 3 kW

Range3000 m

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FCV1900B

TruEcho CHIRPTM Technology delivers high resolution echoes in shallow and deep water

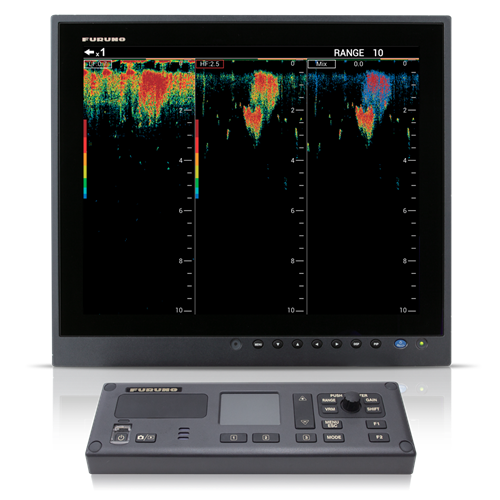

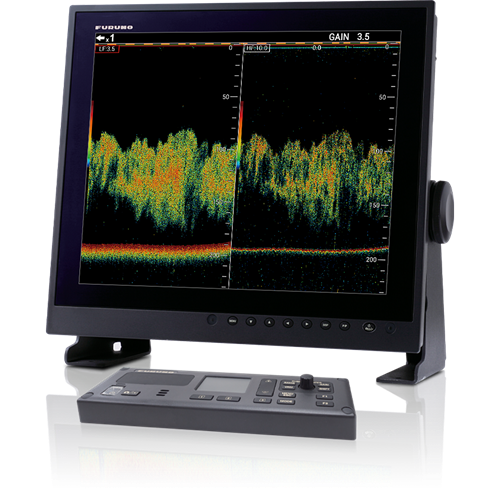

The FCV1900B is a powerful, high-resolution TruEchoTM CHIRP stand-alone Fish Finder designed for both commercial and sport fishing boats. It transmits in CHIRP, Standard and CW mode depending on your situation, to deliver the best possible targets to your display.

With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV1900B ensures excellent target separation and clarity. The FCV1900B is also available as the FCV1900G with built-in Fish Size Indicator*. FCV1900G offers a precise fish size histogram for accurate estimation of fish size and density of schools of fish. With fish size histogram, targets can be properly evaluated, spelling increased efficiency and profitability.

*TruEcho CHIRP™ compatible transducer required.

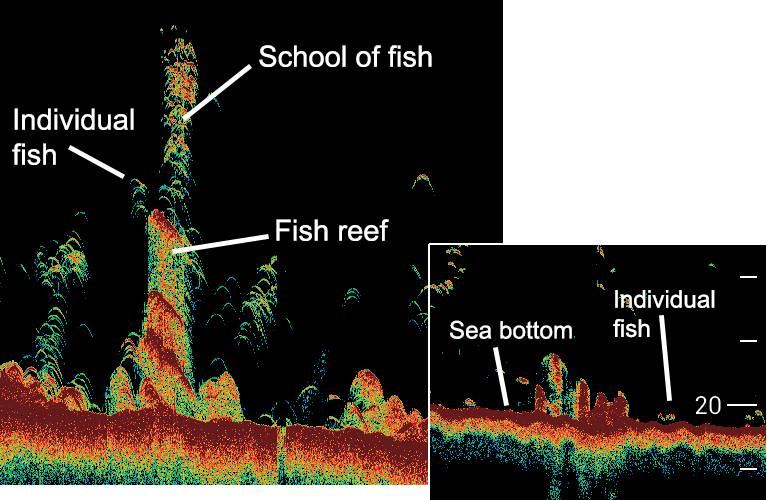

Spot individual fish within schools, off reefs and near the sea floor.

Individual fish can be discriminated within schools of fish, for easy identification of size and species. Additionally, you can easily spot individual fish close to the sea bottom.

To see even more than ever before, now you can display up to four different frequencies together in a compact and easy way by connecting a network Fish Finder. Since there is no need to install additional displays, this system is especially useful for small vessels.

Distinguish individual fish at greater depths

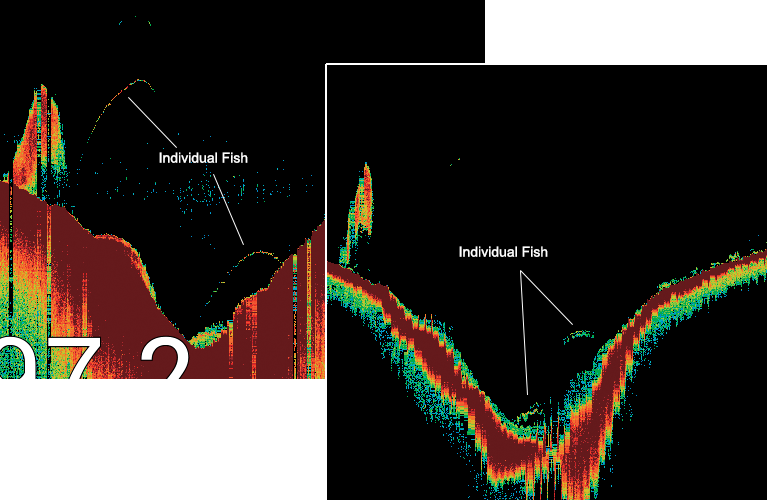

With the FCV1900B's improved depth resolution, individual fish can be observed even at depth of 325 feet and deeper. Individual fish are displayed in a distinct boomerang shape.

Mix high and low frequencies for a more detailed picture

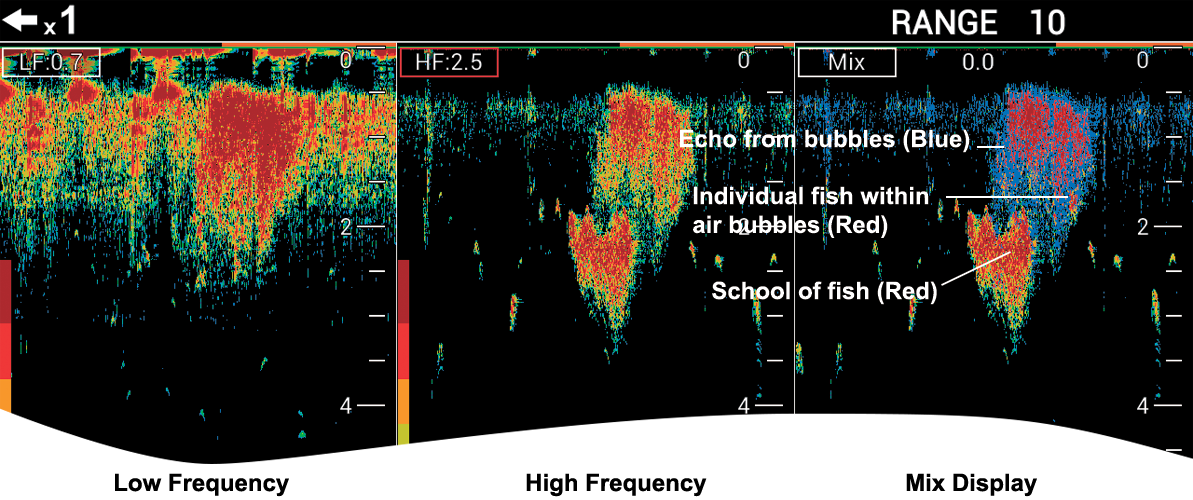

The Mix Display feature is a great way to clearly visualize exactly what you are seeing and where the fish are located! Even when it is close to the sea surface, fish are displayed clearly. In the Mix Display, which combines the low and high frequencies, the bubbles are displayed in blue, and fish are displayed in bright red for easy target discrimination. (Recommended transducer: CM275LWH)

Instantly see what you've been missing

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

  • Cables
  • Transducers
  • Marine Monitors
  • Miscellaneous Accessories

Cables

Cables

$80.00
A-TO-D HDMI ADAPTER
$59.00
MJ-A6SPF0003-020C 2M CBL
$99.00
MJ-A6SPF0003-100C 10M CBL
$185.00
WHN 0 STOCK,GO TO 001-594-660-00
$120.00
CABLE HDMI TO DVI 5.3M*

Transducers

Transducers

$1,600.00

Bronze, Thru-Hull CHIRP Transducer, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

$2,500.00

Urethane, 2kW Tank/Cavity/Pocket Mount CHIRP Transducer, 38-75kHz and 130-210kHz

$3,260.00

Urethane, 2kW Tank/Cavity/Pocket Mount CHIRP Transducer, 38-75kHz and 80-130kHz

$1,400.00

GO TO CM265LHG

$1,800.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 150-250kHz

$4,999.00

GO TO CM599LHG

$4,995.00
Urethane, 1-3kW Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 150-250kHz
$7,360.00

Urethane, 2-3kW Tank/Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 80-130kHz

Marine Monitors

Marine Monitors

$2,395.00
15" Marine Display
$5,295.00

15" Color LCD Monitor w/o Bracket

$6,195.00

19" Color LCD Monitor without bracket

$4,795.00

19" PORTRAIT LCD MONITOR

$5,795.00
15" Color LCD Marine Monitor
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

$745.00
CONTROL UNIT FCV1900
$1,010.00
JUNCTION BOX RJB-002
$395.00
Video Interface for FCV1900/CH500/CH600 to NavNet TZtouch3 MFD

FCV1900B/G Brochure

For more information, including dimensions and product specifications, download the brochure.
