DFF1UHD+

MSRP: $1,295.00

Black Box TruEcho CHIRP with Side Scan

Display SizeBlack Box

Display TypeBlack Box

FrequencyCW 50-200 kHz and CHIRP 40-225 kHz and CHIRP Side-Scan 230 or 455 kHz

Power Usage12-24 VDC

Power Output150 W or 300 W or 600 W or 1 kW

Range4000 ft

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Specifications

Features

Accessories

Recommended Additions

Extras

Home Products DFF1UHDPLUS

Next Generation Fishing And Navigation Solution for NavNet TZtouchXL

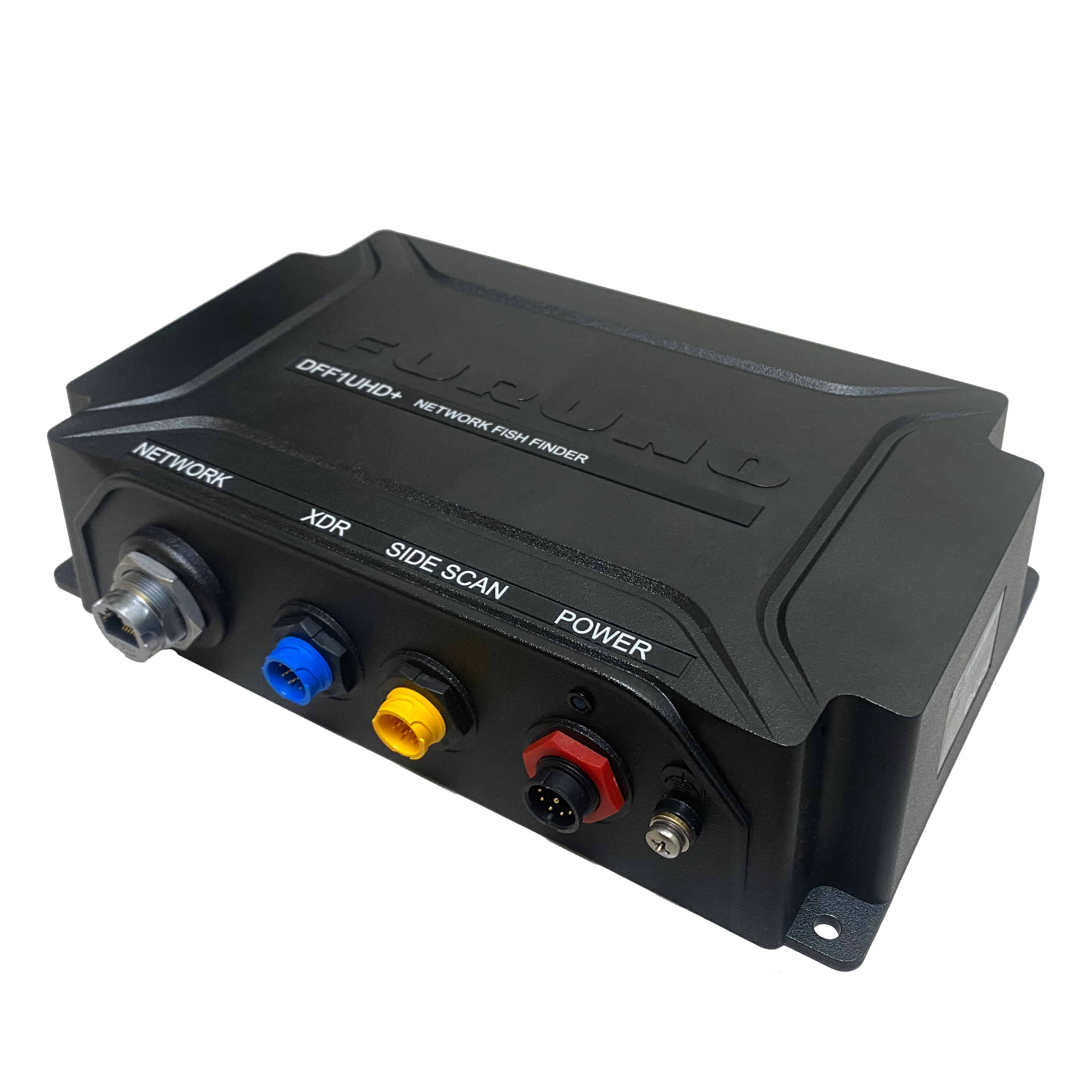

The DFF1UHD+ is a powerful multi-channel network Fish Finder designed for seamless integration with NavNet TZtouchXL, the perfect addition for helms featuring the TZT22X, TZT24X, or Black Box TZTBBX. The DFF1UHD+ combines up to 1 kW of CW and CHIRP Fish Finder power with 230 kHz or 455 kHz CHIRP Side-Scan in a single compact unit, delivering enhanced performance and versatility. Color-coded, waterproof connectors and a compact design allow for a simple installation.

Advanced Fish Finder Features

Compatible with 300/600 W or 1 kW Transducer (Matching box MB1100 required for some CW transducers)
Display Range from 6 to 4,000 feet
Modes: ACCU-FISH™*, A-Scope, Manual Gain, Auto Gain (Fishing/Cruising), TruEcho CHIRP™, Bottom Discrimination (Compatible transducer required)
8-Step Picture Advance: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms: Fish School, Fish School for bottom lock

CHIRP Side-Scan Features

CHIRP at 230 kHz or 455 kHz center frequency
Display range up to 750 feet to each side
View CHIRP Side-Scan in full screen, 1/2 screen, 1/3 screen, 1/4 screen, and 1/6 screen
Eight CHIRP Side-Scan display colors

A Variety of Transducer Combinations

There are a variety of available transducer combinations to meet the needs of any vessel:

Without Side-Scan:

Single CHIRP 
Dual CHIRP
Single CW
Single Mid-CHIRP and CW

With Side-Scan:

Single CHIRP and CHIRP Side-Scan
Single CW and CHIRP Side-Scan

Cables
CHIRP Side-Scan Transducers
CHIRP Transducers
Transducers
Bottom Discrimination Transducers

Cables

Model / Part #

MSRP - USD

AIR-040-406-10

$150.00

Y Cable 12 Pin to 2EA 10 Pin TZT3

$150.00

001-167-880-10

$60.00

LAN CBL ASSY 2M RJ45XRJ45 4P

$60.00

001-167-900-10

$111.00

LAN CBL ASSY 10M RJ45XRJ45 4P

$111.00

001-646-980-00

$126.00

TZtouchXL LAN CBL ASSY 5M WP RJ45 TO NON-WP RJ45

$126.00

001-653-260-00

$112.00

TZtouchXL LAN Cable ASSY 5M WATERPROOF RJ45XRJ45

$112.00

001-646-960-00

$101.00

TZtouchXL LAN CBL ASSY 2M WP RJ45 TO NON-WP RJ45

$101.00

001-647-000-00

$152.00

TZtouchXL LAN CBL ASSY 10M WP RJ45 TO NON-WP RJ45

$152.00

WRJ-ADP-05M

$55.00

Waterproof RJ45 (M) to RJ45 Adapter Cable .5M

$55.00

WRJ-FIN-CON

$21.00

Waterproof RJ45 Field Connector

$21.00

001-608-450-00

$119.00

12-Pin Transducer Extension Cable, 10 Meter

$119.00

TZ3-12P-PGT

$145.00

12 Pin Pigtail Cable Assembly for NavNet TZtouch3, 1 meter

$145.00

CHIRP Side-Scan Transducers

Model / Part #

MSRP - USD

225T-PR904

$1,700.00

Paired Thru-Hull CHIRP Side-Scan Transducers for NavNet TZtouch3 and TZtouchXL

$1,700.00

225T-TM904

$650.00

Transom Mount CHIRP Side-Scan Transducer for NavNet TZtouch3 and TZtouchXL

$650.00

225T-SS904

$800.00

Thru-Hull CHIRP Side-Scan Transducer for NavNet TZtouch3 and TZtouchXL

$800.00

455T-PR903

$1,700.00

Paired Thru-Hull High-Frequency CHIRP Side-Scan Transducers for NavNet TZtouchXL

$1,700.00

455T-TM903

$650.00

Transom Mount High-Frequency CHIRP Side-Scan Transducer for NavNet TZtouchXL

$650.00

455T-SS903

$800.00

Thru-Hull High-Frequency CHIRP Side-Scan Transducer for NavNet TZtouchXL

$800.00

CHIRP Transducers

Model / Part #

MSRP - USD

B75L

$725.00

Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W

$725.00

SS75L

$750.00

Low-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull, 300W

$750.00

B75H

$750.00

High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull

$750.00

B75M

$750.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 600W

$750.00

B150M

$475.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W

$475.00

B785M

$900.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

$900.00

SS75H

$750.00

High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull

$750.00

SS75H/12

$895.00

High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt

$895.00

SS75H/20

$750.00

High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt

$750.00

SS75M

$750.00

Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull

$750.00

SS75M/20

$750.00

Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt

$750.00

SS75M/12

$750.00

Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt

$750.00

TM165HW

$500.00

High-Frequency, Wide-Beam CHIRP Transducer - Plastic Transom Mount

$500.00

B265LH-12P

$1,600.00

Bronze, Thru-Hull CHIRP Transducer with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

$1,600.00

B275LHW-12P

$2,100.00

Bronze, Thru-Hull CHIRP Transducer w/Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz

$2,100.00

CM275LH-W-12P

$2,095.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer with 12-Pin Connector, 42-65kHz and 150-250kHz

$2,095.00

PM265LH-12P

$1,600.00

Bronze, Pocket Mount CHIRP Transducer w/Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

$1,600.00

PM275LHW-12P

$1,900.00

Bronze, Pocket Mount CHIRP Transducer w/Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freg: 150-250kHz

$1,900.00

B175H

$1,100.00

High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull

$1,100.00

B175L

$1,400.00

Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 1kW

$1,400.00

B175L/12

$1,400.00

GP1X71F BR TH 40/60KHZ 1KW

$1,400.00

B175L/20

$1,400.00

GP1X71F BR TH 40/60KHZ 1KW

$1,400.00

B175M

$1,300.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull

$1,300.00

B175M/12

$1,300.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt

$1,300.00

B175M/20

$1,600.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt

$1,600.00

B175HW

$1,400.00

High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull

$1,400.00

B175HW/12

$1,400.00

High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt

$1,400.00

B175HW/20

$1,400.00

High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt

$1,400.00

B285M

$1,300.00

Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

$1,300.00

TM185HW

$1,200.00

High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket

$1,200.00

TM185M

$1,000.00

Medium-Frequency CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket

$1,000.00

Transducers

To use 10-pin transducers use 000-200-955-10 (10-pin to 12-pin adapter cable) that is included with your TZtouch XL MFD.
These transducers enable all standard Fish Finder features including RezBoost, but DO NOT support Bottom Discrimination.
To utilize the Bottom Discrimination mode of the MFD please select a transducer from the "Bottom Discrimination Transducers" list.

Model / Part #

MSRP - USD

520-5MSD

$341.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

$341.00

520-5PSD

$196.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

$196.00

520-PLD

$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$100.00

525-5PWD

$124.00

Plastic Transom Mount Transducer, 600W (10-Pin)

$124.00

525T-PWD

$120.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

$120.00

525T-BSD

$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

$230.00

525T-LTD/12

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$275.00

525T-LTD/20

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$275.00

525STID-PWD

$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

$195.00

525TID-BHD

$900.00

Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)

$900.00

525TID-TMD

$775.00

Transom Mount Transducer with Temp, 1kW (10-Pin)

$775.00

525STID-MSD7

$550.00

Bronze Thru-Hull Multisensor with 7 Inch Stem, 600W (10-Pin)

$550.00

527ID-IHD

$1,000.00

Urethane In-Hull Transducer, 1kW (10-pin)

$1,000.00

555-SLTD/20

$800.00

Stainless Steel Thru-Hull, Flush Mount Transducer, 600W (10-Pin), 20° Tilted Element

$800.00

556TID-LTD/20

$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element

$1,000.00

556TID-HDD

$1,250.00

Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

$1,250.00

556TID-LTD/12

$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element

$1,000.00

556TID-LTD/0

$1,350.00

Stainless Steel Thru-Hull Transducer, 1kW (10 Pin)

$1,350.00

165T-50/200-TM260

$2,300.00

Transom Mount Combo Transducer for DFF3D

$2,300.00

165T-50/200-SS260

$3,000.00

Stainless Steel Through Hull Combo Transducer for DFF3D

$3,000.00

SS60-SLD

$400.00

Stainless Steel, Low-Profile Thru-Hull Transducer, 600W, 50/200KhZ

$400.00

SS264W-50/12

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt

$900.00

SS264W-50/20

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt

$900.00

SS60-SLTD/12

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$400.00

SS60-SLTD/20

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$400.00

CA50/200-12M

$1,014.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$1,014.00

CA50/200-1T

$1,014.00

Rubber Coated Transducer, 1kW (No Plug)

$1,014.00

CA50B-6B

$289.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$289.00

CA50B-6B/30

$574.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)

$574.00

CA50B-6B/50

$838.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)

$838.00

CA200B-5S

$310.00

Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)

$310.00

Bottom Discrimination Transducers

To use 10-pin transducers use 000-197-069-10 (10-pin to 12-pin adapter cable) that is included with your TZtouch XL MFD.
These transducers enable all Fish Finder features noted in the description, INCLUDING Enhanced RezBoost and Bottom Discrimination.
If you will not be using the Bottom Discrimination mode, you can also select a transducer from the standard Transducer List.
Note that the CA50/200-12M and CA50/200-1T require the use of MB1100 Transducer Matching Box.

Model / Part #

MSRP - USD

520-5MSD

$341.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

$341.00

525T-LTD/12

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$275.00

525T-LTD/20

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$275.00

525T-BSD

$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

$230.00

525STID-MSD

$450.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

$450.00

520-5PSD

$196.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

$196.00

520-PLD

$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$100.00

525STID-PWD

$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

$195.00

525-5PWD

$124.00

Plastic Transom Mount Transducer, 600W (10-Pin)

$124.00

SS60-SLTD/12

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$400.00

SS60-SLTD/20

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$400.00

526TID-HDD

$1,400.00

Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)

$1,400.00

CA50/200-1T

$1,014.00

Rubber Coated Transducer, 1kW (No Plug)

$1,014.00

CA50B-6B

$289.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$289.00

CA200B-5S

$310.00

Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)

$310.00

Recommended Additions

TZTBBX
$4,495.00
NavNet TZtouchXL Black Box Chart Plotter
Details
TZT22X
$10,495.00
NavNet TZtouchXL Chart Plotter, 22" All-Glass IPS Display FULL HD (1920x1080)
Details
TZT24X
$11,995.00
NavNet TZtouchXL Chart Plotter, 24" All-Glass IPS Display FULL HD (1920x1080)
Details
SCX20
$1,595.00
Satellite Compass NMEA2000^®
Details

New Visitor?

DFF1UHD+

Next Generation Fishing And Navigation Solution for NavNet TZtouchXL

Advanced Fish Finder Features

CHIRP Side-Scan Features

A Variety of Transducer Combinations

Cables

Cables

CHIRP Side-Scan Transducers

CHIRP Side-Scan Transducers

CHIRP Transducers

CHIRP Transducers

Transducers

Transducers

Bottom Discrimination Transducers

Bottom Discrimination Transducers

Recommended Additions

TZTBBX

TZT22X

TZT24X

SCX20
