PUMPLA11-12

MSRP: $2,750.00

LIN. ACTUATOR PUMP 9" RAM 12V

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products PUMPLA11-12

Pump Features and Specifications

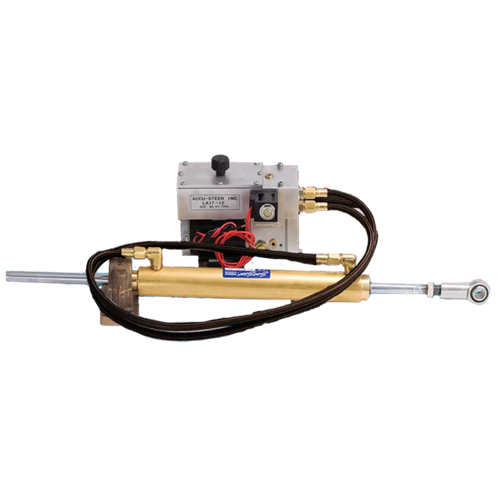

The Accusteer PUMPLA11-12 Linear Actuator is designed to interface an autopilot system with mechanical steering systems such as wire, cable or chain drives. This linear actuator consists of a hydraulic drive unit, steering cylinder, and interconnecting hoses.This unit is also available as the PUMPLA17-12 using a 1.75" x 9" RAM.

PUMPLA11 Specifications:

  • Heavy-duty brass cylinder (2" bore x 11" stroke)
  • 1.5" x 9" RAM
  • Compact and rugged drive unit
  • Average Motor Current: 3-6 Amps – PUMPLA11-12 (12VDC Motor), 2-4 Amps – PUMPLA11-24 (24VDC Motor)
  • Cylinder Design: Balanced
  • Max Cylinder Stroke and Swept Volume: 9 in. (23 cm) and 13.1 cubic in. (215 cc)
  • Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V)
  • Max Cylinder Thrust @ 500 psi: 785 lbs (356 kg)
  • Hard Over Time (HOH): About 13 Seconds
  • Maximum Rudder Torque (+/-35 deg. @ 8 in. Rudder Shaft to Tiller Bolt Distance): 6280 in. lbs. (710 Nm)
  • Raymarine Equivalent Linear Drive: TYPE 1 (Recommended Maximum Boat Displacement = 22,000lbs (10,000kg))
  • Simrad Equivalent Linear Drive: HLD350
