MSRP: $5,295.00

25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and cable

Antenna Size3.5 ft or 4 ft or 6 ft

Antenna TypeOpen Array


Display SizeSupplied Separately

Display TypeSupplied Separately

Beam Width2.3 degrees or 1.9 degrees or 1.35 degrees

Power Usage12-24 VDC

Power Output25 W

Range72 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DRS6ANXT

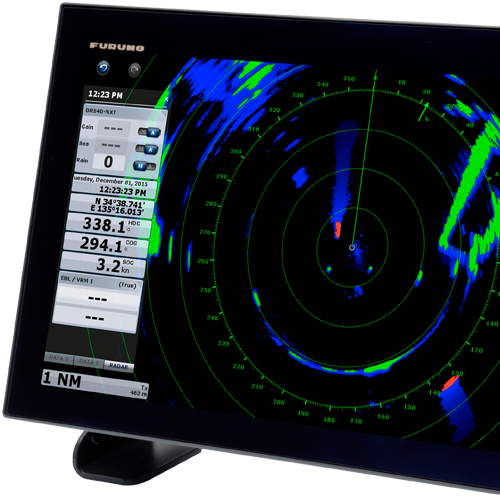

The NXT step with doppler Radar technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT Radars are compatible with NavNet TZtouch, TZtouch2, TZtouch3, TZtouchXL, and the FR10/FR12 Radar Series.

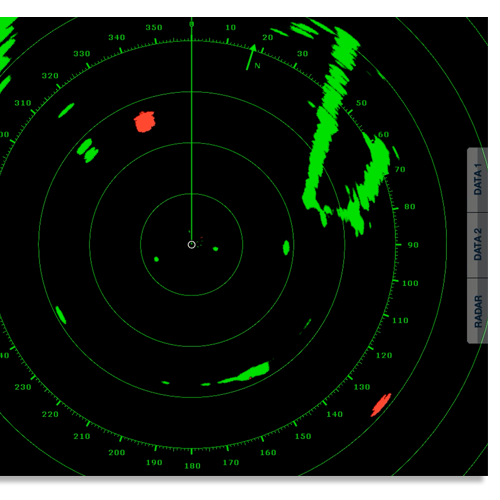

Target Analyzer function utilizing Doppler technology

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

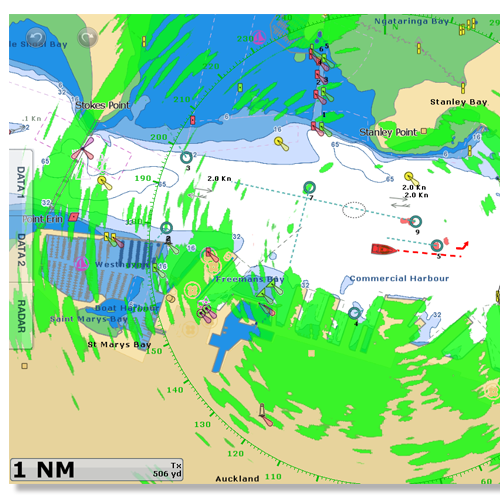

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

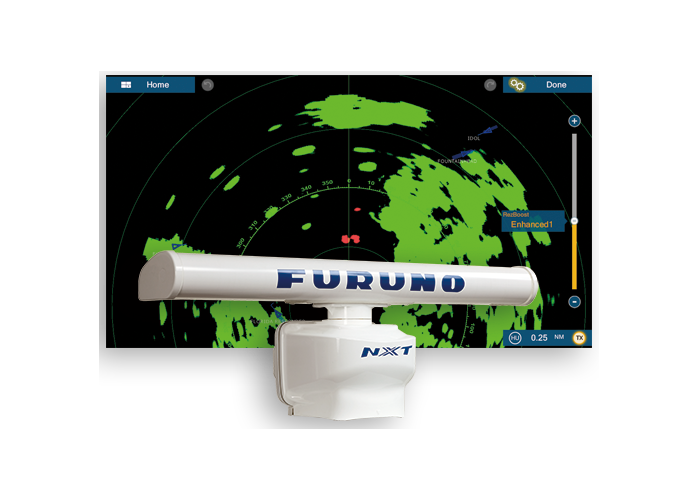

RezBoost Beam Sharpening

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

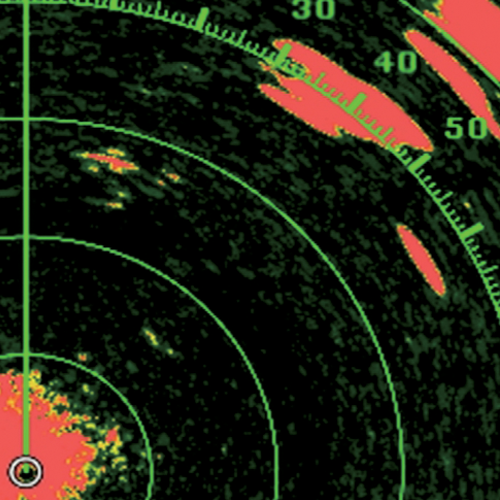

Bird Mode gives you the inside scoop on schools of fish!

The DRS-NXT series features an enhanced Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird Mode adjusts the gain and sea settings automatically for optimal visibility.

  • Choose an Antenna Array
  • Cables
  • Miscellaneous Accessories

Choose an Antenna Array

Choose an Antenna Array


Antenna, 41 Inch Open Array


Antenna, 4 Foot Open Array


Antenna, 6 Foot Open Array



DRS AX and NXT Signal/Power Cable, 10 Meter
DRS AX and NXT Signal/Power Cable, 15 Meter
DRS AX and NXT Signal/Power Cable, 20 Meter
DRS AX and NXT Signal/Power Cable, 30 Meter

Miscellaneous Accessories

Miscellaneous Accessories

DC Converter 12V-24V 7 AMPS

Recommended Additions

  • TZT14


    NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

  • TZTL12F


    NavNet TZtouch2 Chart Plotter/Fish Finder, 12" Touch Screen Display

  • TZTL15F


    NavNet TZtouch2 Chart Plotter/Fish Finder, 15" Touch Screen Display

  • TZT9


    NavNet TZtouch 9" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)


DRS-NXT Series Brochure

For more information, including dimensions and product specifications, download the brochure.
