CH250/60/240

No Longer Available

MSRP: Call For Price

60 kHz Searchlight Sonar System with 10.4 Inch Color LCD Display. Includes 400mm Travel Hoist and Operates at 12VDC.

Display Size10.4 inches

Display TypeColor LCD

Frequency60 kHz

Power Usage12 VDC

Power Output1.2 kW

Range5000 ft

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CH250--60--240

The sport fisherman's dream machine!

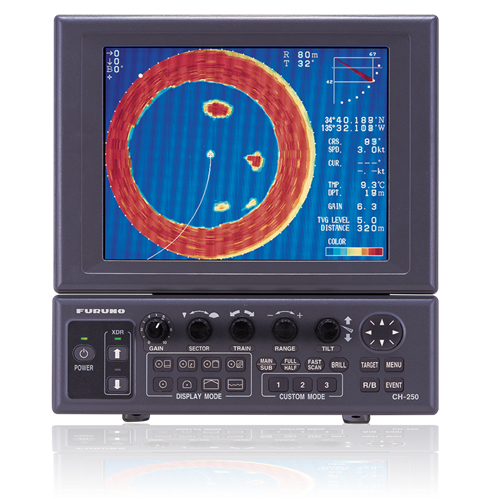

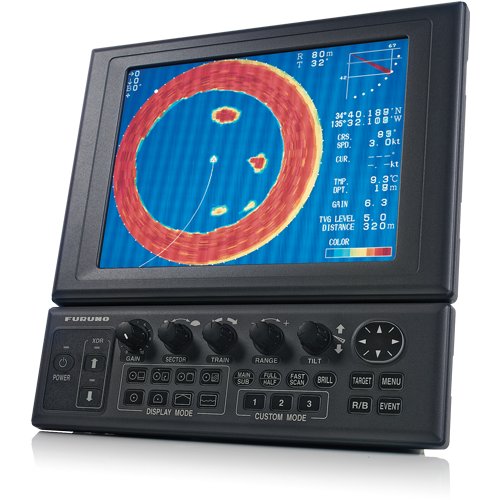

The Furuno CH250 is designed for boats 40 feet and up. This high-performance searchlight sonar displays fish and underwater objects on a sunlight viewable 10.4" color LCD TFT display. It has the ability to rapidly scan a full 360 degrees around the boat or just specified sectors. The Sonar transmits a full 1,200 Watt (RMS) power output. The waterproof LCD is capable of showing 8- or 16-color targets including white, with a selectable day or night color pallete. With Audio Target Detection, continuous visual watch is not necessary (optional speaker required).

Manual or automatic training

The soundome provides a 6.5 degree x 6.5 degree beam angle and 1 degree tilt angle steps from +5 to -90 degrees. When speed data is provided, automatic retraction of the soundome at speeds of 5 to 15 knots can be enabled. The system comes standard with an MS100 motion sensor (clinometer) for 360 degree stabilization of sonar image.

Eight unique operational modes

There are eight operational modes to choose from. Full circle scan helps to detect fish schools at any bearing, all around the vessel. Vertical slice mode gives you a fore and aft, surface to surface, expanded view of fish school distribution on the selected bearing. The combination full circle/vertical slice mode finds fish targets and bottom structure all around the vessel, with a vertical slice display at the same time. You can set it for a depth sounder mode, which has a tilt and train capability for forward or side looking. It is even stabilized against the boats motion. Full Circle with Video Plotter displays your ship's track with respect to the sonar sounding area - an unrivaled feature for purse seining. A unique Cross-Section mode let's you instantly view the vertical plane in a specified direction, useful for evaluating the concentration and location of fish schools, or as an aid to navigation.

  • Product Consists Of
  • Cables
  • Sonar Shafts And Hull Tubes
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$3,025.00
10.4 Inch Color TFT LCD Display with CH252 Control Unit
$1,475.00
Sonar Oil and Flange with Installation Materials
$2,575.00
Transceiver
$3,375.00
60kHz Hoist Unit, 400mm Travel, 12VDC
$4,360.00
60kHz Soundome Assembly with 5.2 Meter Cable Assembly
$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$465.00
15M CABLE 06S4080 CH250 CH300
$395.00
Cable Assembly, Processor to Display or IF8000, 5 Meters

Cables

Cables

$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
$140.00
NMEA Cable, 2 x 6 Pin Connector, 5 Meters
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

$150.00
Signal Cable Assembly, MS100 & BS704, 10 Meters
$115.00
CBL ASSY MJ-A10SPF0002-0.15M
$145.00
Cable Assembly MJ-A10SPF0002 1.5M
$125.00
Signal Cable Assembly, Control Unit to Display or IF8000, 5 Meters
$695.00
30M CABLE 06S4080 CH250 CH300*
$1,195.00
50M CABLE 06S4080 CH250 CH300
$555.00
CBL ASSY 06S4078 10M CH250

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.
$350.00
4 Foot Stainless Steel Soundome Shaft. (1.1 Meters)
$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
$950.00
10 Foot Stainless Steel Soundome Shaft. (3 Meters)
$1,200.00
13 Foot Stainless Steel Soundome Shaft. (3.8 Meters)

Miscellaneous Accessories

Miscellaneous Accessories

$650.00

Clinometer with 10 Meter Cable Assembly

$1,380.00
Control Head With 5 Meter Cable
$300.00
Handheld Remote Control with 5 Meter Cable Assembly
$740.00

Black Box Interface Unit (Less Signal Cable Assembly)

$1,495.00

Black Box Interface Unit, Modified for Dual Display (Less Signal Cable Assembly)

$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$1,275.00
Rectifier, 110/220VAC to 24VDC, 16 Amps
$125.00
NMEA Data Combiner IF2901
$125.00
Sonar Soundome Oil, 4 Liters
$350.00
SPEAKER SC-05WR 4 OHM CH250
$545.00
Display Mounting Bracket Assembly
$90.00
Display, Snap-On Front Cover, Landscape Style
$65.00
Display Viewing Hood Assembly, Landscape Style
$260.00
Table-top Mounting Kit for Control Unit (CV1202)
$150.00
Flush Mounting Kit for Unibody Display and Control Unit
$125.00
Flush Mounting Kit for Display Unit
$110.00
Flush Mounting Kit for Control Unit
$218.00
Display, Mounting Bracket Assembly
$550.00
Table-Top Mounting Kit for Separate Display and Control Unit, with 1.5 Meter Cable
$20.00
STICKER 06-021-4013-1 ROHS
$20.00
FINGER WNG LBL 06-021-4015-0
$325.00
Display, Mounting Bracket

Manuals

Manuals

$50.00
Operator's Manual, CH250
$17.95
Parts List, CH250
$50.00
Operator's Manual in Spanish, CH250
$40.00
Installation Manual, CH250
$50.00
Operator's Manual in Japanese, CH250
