No Longer Available
4 kW Transmitter, 48 NM Radar System with 10.4" Color LCD display and 3.5 ft. Open Array
Antenna Size3.5 ft
Antenna TypeOpen Array
Display Size10.4 inches
Display TypeColor LCD
Beam Width2.4 degrees
Power Usage12-24 VDC
Power Output4 kW
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Crystal clear target presentation and automatic clutter rejection

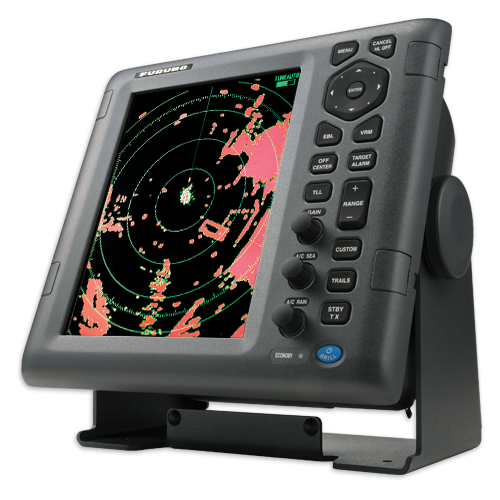

The new 1835/1935/1945 Radar Series features a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters. The Radar allows you to see far away objects before they are visible, and allows you to see in the dark, fog or during periods of obstructed visibility in any weather condition.

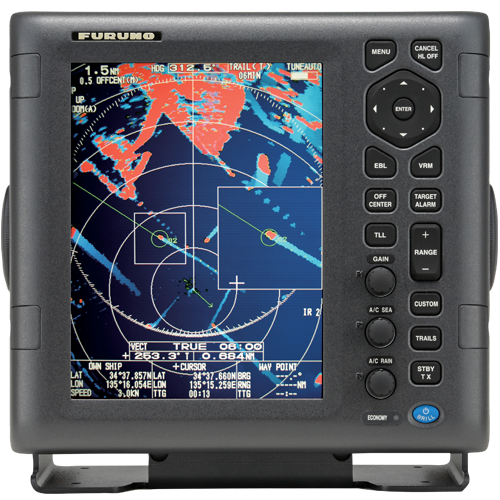

Easily track up to 100 AIS targets and 10 ARPA target
With the optional ARP11 internal ARPA PCB, up to 10 ARPA targets can be tracked and overlaid on the radar screen to assist the operator in monitoring other vessel movements. With the connection of an external AIS receiver, up to 100 AIS may also be tracked. A variety of navigational information such as vessel name, speed, ROT, draft, and the destination of the selected targets can be included in real time. Unlike ARPA targets, AIS targets are visible on-screen even if they are obscured by large ships or islands, since AIS works by VHF transceiver system and does not require line-of-sight. Both ARPA and AIS require heading input.
With a push of the “OFF CENTER” button, own ship position can be shifted to a pre-registered point on the screen, allowing the operator to focus on a specific area ahead of or around the vessel without losing track of the position.
Enhanced short-range target discrimination
With its advanced signal processing technology, the Radar demonstrates a substantial increase in target detection, particularly for close range targets. The unit can be interconnected with other navigation equipment such as chart plotters and sounders through Furuno's programmable NMEA 0183 interface system, affording operators the ability to expand their boat's system as needed.

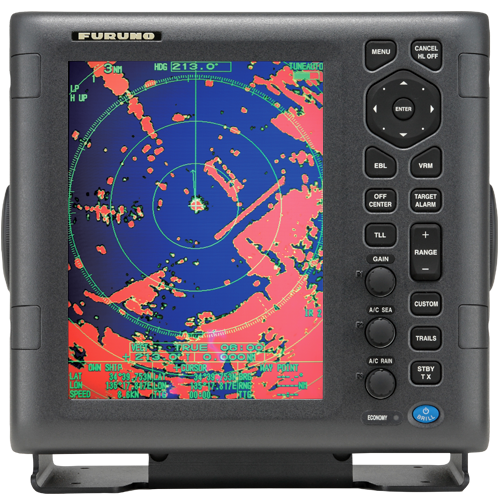

New, useful modes of operation including Full Screen Mode
In Full Screen mode, the entire display is filled with the echo image. Full-screen echo presentation capability allows the operator to observe a wider overview of the surrounding area. You can even toggle on and off the on-screen navigation data to display only the Radar image.
- Product Consists Of
- Related Products
- Miscellaneous Accessories
Product Consists Of
Note: List Price Credit for Standard Signal Cable Assembly is $225.00
FLUSH MOUNTING SPONGE FCV295
Interface Converter NMEA2000-NMEA0183
