165T/265LH-PM488

MSRP: $3,500.00

Pocket Mount Combo Transducer for DFF3D

Beam Angle120 Degrees and 25 x 16 Degrees and 10 x 6 Degrees

Frequency165 kHz and CHIRP 42-65 kHz and 130-210 kHz

Housing TypeUrethane

Install TypeIn Hull

Power Rating1 kW

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products 165T--265LH-PM488

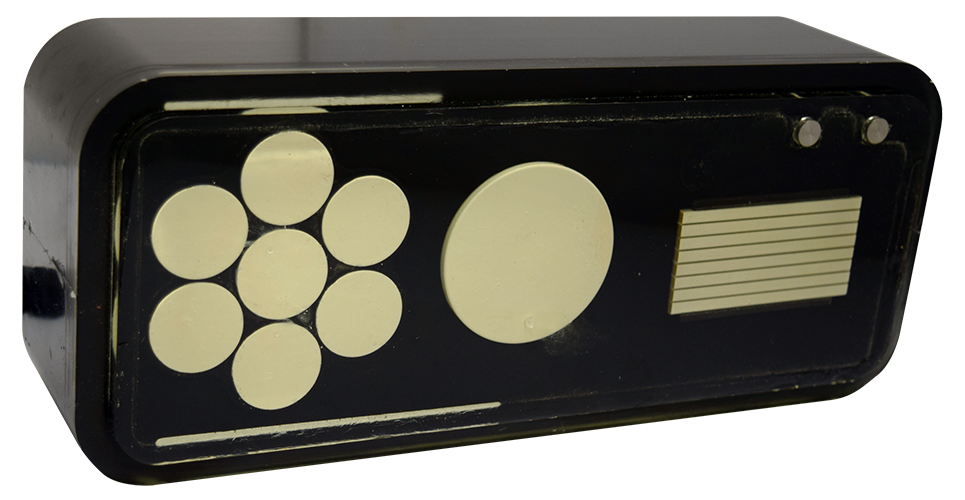

Pocket Mount Combination Transducer

This is a new size housing (12 LX 5 W X 3.5 H) that contains the DFF3D elements along with the same CHIRP elements contained in B265LH.

Standard Features

  • DFF3D operating frequency 165 kHz
  • Built-in motion sensor
  • Built in temp sensor
  • Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
  • High—CHIRPS from 130 kHz to 210 kHz, Beamwidth 10° to 6°
  • All of these elements are built into an Airmar PM488 housing.
  • Bottom Discrimination and Accu-fish compatible (DFF1-UHD without TID only)
  • 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and a pigtail cable for the DFF3D
  • Recommended for a DFF1-UHD and DFF3D installation
  • Cables

Cables

Cables

$470.00
10M EXT CBL KIT 165KHZ & CHIRP*
